DEC equipment: systems, accessories, monitors

I acquired some DEC items, including some DEC terminals, and DEC monitors. They have either been tested and appear functional to that extent; or not tested and as are described. I've also did a little work on other people's DEC systems.

DEC systems I've worked on recently

For the MARCH computer museum group, I spent a year developing an exhibit and researching the history of an early PDP-11/20 system. Here's a portion of the Web pages and work I did. The system is on exhibit at MARCH's museum. The MARCH Web site shows some of that work.

PDP-8/F system

I picked up a PDP-8/f system some years ago. I'm just starting to work with it in 2009: check this Web page about it.

PDP 11/73 systems!

PDP 11/73 systems! I have two Micro 11/73 systems, rack mount. Both come up and display at the console terminal. One has RSX-11 running some kind of "spectrometer" control/data acq. application; the other has a bad RD53A (Micropolis 1325D) MFM hard drive which shuts down. But the serial console is responsive andit runs through the start-up diagnostics. Both systems have TK50 tape drives, not tested. 1MB or 2MB memory apparently. Cabinet lable says "173QZ-D2" with Astec power supply AA12131, 345W on either. Cards below identified by model name on card tabs, descriptions are NOT GUARANTEED as every card not pulled and examined. Unpacked weight over 60 lbs; packed weight could be near 70 lbs.

The RSX11M booting 11\73 has a TK50 tape drive and a RD53A hard drive, and the following cards: M8190 KDJ11 CPU
M7551 MSV11 MOS RAM card
M7504 DEQNA with cable too DEQNA connector
M7546 TQK-50 tape controller for TK50
M7555 RQDX3 Winchester & floppy controller
--(RX50, RD50-54, RD31, RD32?) M9047 bus grant continuity
M7513 RQDX expander, with cable to rear 50-pin connector
adac card 1953-0, interface to some instrument.

The nonbooting 11/73 has a TK50 tape drive and a RD53A hard drive, and the following cards (check descriptions above): M8190; M7551
SKYMNK-02A-02 >> two quad width cards cabled together:
SKYMNK 02B-01 >> large chip Weitek 1516APC, PALs, etc.
---Sky Computer 1M flop 32-bit float co-processor for FFT calculations?
M7546 with internal cable
M7555 with internal cable
M7513 with cable to rear 50-pin connector
M7504 cabled to DEQNA connector
adac card 1953-0, interface to some instrument.
CQD-200/M by CMD Technology Inc, w/50-pin flat cable connector
---and 10 pin connector. Has 8086 processor, NCR5386? chip, etc.
---may be SCSI disk controller

PGT System 4 with LSI-11

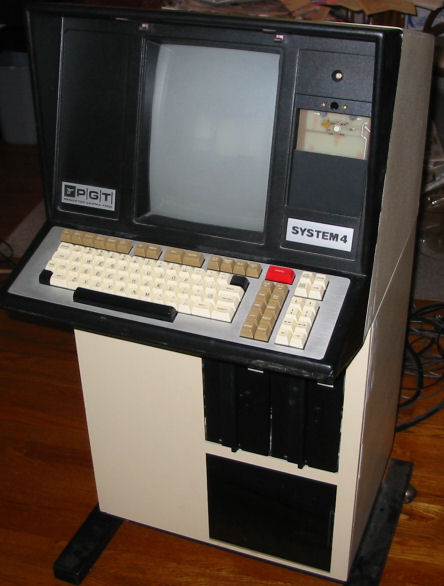

[PGT System 4] A few years ago I acquired a Princeton Gamma Tech "System 4", which includes an LSI-11 board and other QBus cards, in a "small" rack system with color monitor and keyboard. It powers up and boots their operating software, which does chemical analysis. This system would be difficult to ship, we'd prefer pickup from central NJ (SUA), or we'd consider shipping it in parts. Weight under 200 lbs, and the base has good ball wheels.

The purpose of these were to acquire & analyze signals and control a liquid nitrogen cooled SiLi (silicon-lithium) x-ray detector that was mounted in a SEM (scanning electron microscope) port, also interfacing the electronics and providing analysis of microscopic features provided by the microscope. They were superseded by the System 4+ that had non-joined monitors and keyboards, although the bottom cabinets were similar. One System 4 was featured on the forensic MD TV show, "Quincy" with Jack Klugman. Forensic labs are still a big customer base.

The included items are in the rack. There is the LSI-11 chassis ; two 8-inch floppy drives (look like Shugart 851's) driven by a single board controller (probably SASI to floppy); and a number of PGT modules for analog processing and high voltage. (No hard drives.) When booted, the color monitor displays the opening message and requests date and time. The system is not Y2K, it complains about a two-digit year past 00! After this dialog it displays a graph and waits for function key or typed commands in the PGT application language. Most commands seem to require access to the floppy drive.

We recently disassembled this system. Look at this Web page for parts and details.

Alcyon system

I have an Alcyon computer system, a non-DEC Qbus design with a 68000 processor. Check this Web page for details.

PDP-11 repair pulls

PDP-11 repair pulls In late 2005 I got some boards originally from PGT, which built some PDP-11 based equipment and so still serviced it. Many are tagged "good (some date)". But I can't test so sold AS IS. "SMS" is Scientific Micro Systems.

(four) SMS boards w/40 pin connector. dual width labled FAB 0003772-0001/f, 10011939-00001P, 0003770-0001F, 4220-0001. probably disk controller?
(two) SMS boards, quad width, 0004220-C, has flatcable connectors for 50 pin, 2X20 pin, 34 pin, 40 pin. 8085 chip, AM2910 chip. 1985 date codes

DEC M8192, dual width, KDJ11-A Processor (2) boards, 1991 chip dates
DEC M7504, dual width, DEQNA. With apparent test or loopback jumper.

Sigma, dual width, 400200 looks like quad serial card, with TR1865 chips.
quad width extender card. (1) has board edge connector, (1) does not.
Clearpoint RAM board, quad width QRAM-2 SAB-1. has 18 X 8 array of socketed TMS4256-15NL which I read as 256K 150ns DRAMs

Princeton Gamma Tech, TV-3I or TV-3K board. Quad width, twelve 2114's, five ROMs, AD7541 chips.
- I/O of some kind, 1 40pin, 2 20 pin connectors. (3) boards
Princeton Gamma Tech, IBD II, TMS (32)4256-12 DRAMs (soldered) 40 pin connector.(3) Boards.
Princeton Gamma Tech, Model 4000 DAC driver 61-723-A. TVC, MEG1 MEG2 are noted on the board
-- three 40 pin, one 10pin "monitor" and one 20-pin connector. three TRW 84221P chips.

In March 2006 I acquired some DEC boards, mostly quad width, probably small VAX stuff. references to KA630 suggest MicroVax II systems. Condition unknown but look physically OK, they were nicely anti-stat bagged and labled. Sold AS IS. Prices modest, in 2006 these are apparently being dumped by the dealers.

M7608 BP, quad width, "4Meg" lable. 50-16495-01, 144 count of 256Kbit RAM chips M5M4256P-15.
M7608 similar to above "4Meg for KA630"
M7608 similar to above
M7609 quad width "8 Meg" lable. Piceon 3MC94V0, SIP RAM chips.
M7606 -AF quad width, 5016523 01 E1. Apparently MicroVAX/VAXstation II CPU
M7606 as above "KA630"
M7606 as above
M7168 quad width 5016745-01. hasd 32 each M5M4464AP-12 RAMs
M7169 quad width. with 7168, apparently the VCB02-B 4-plane (16 colors) video system.
M3104 "DHV11 8 line"
M7602, quad width, apparently a graphics board.

core memory boards

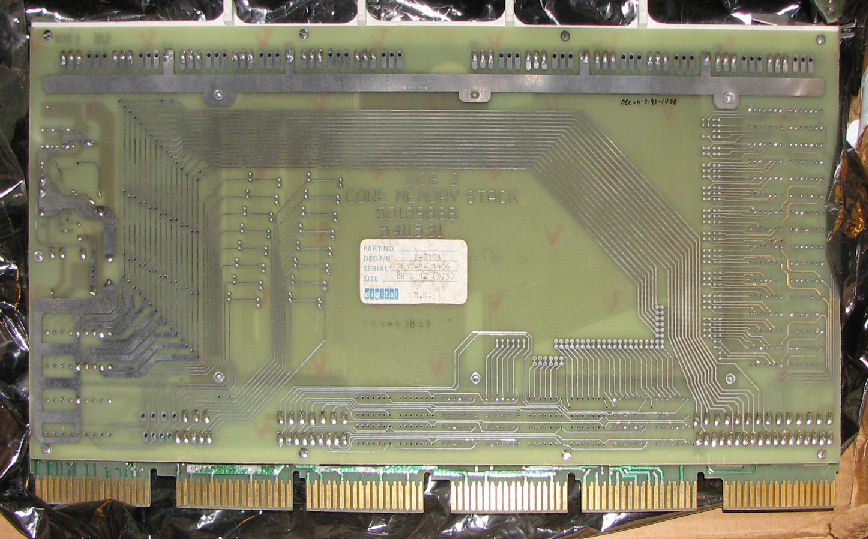

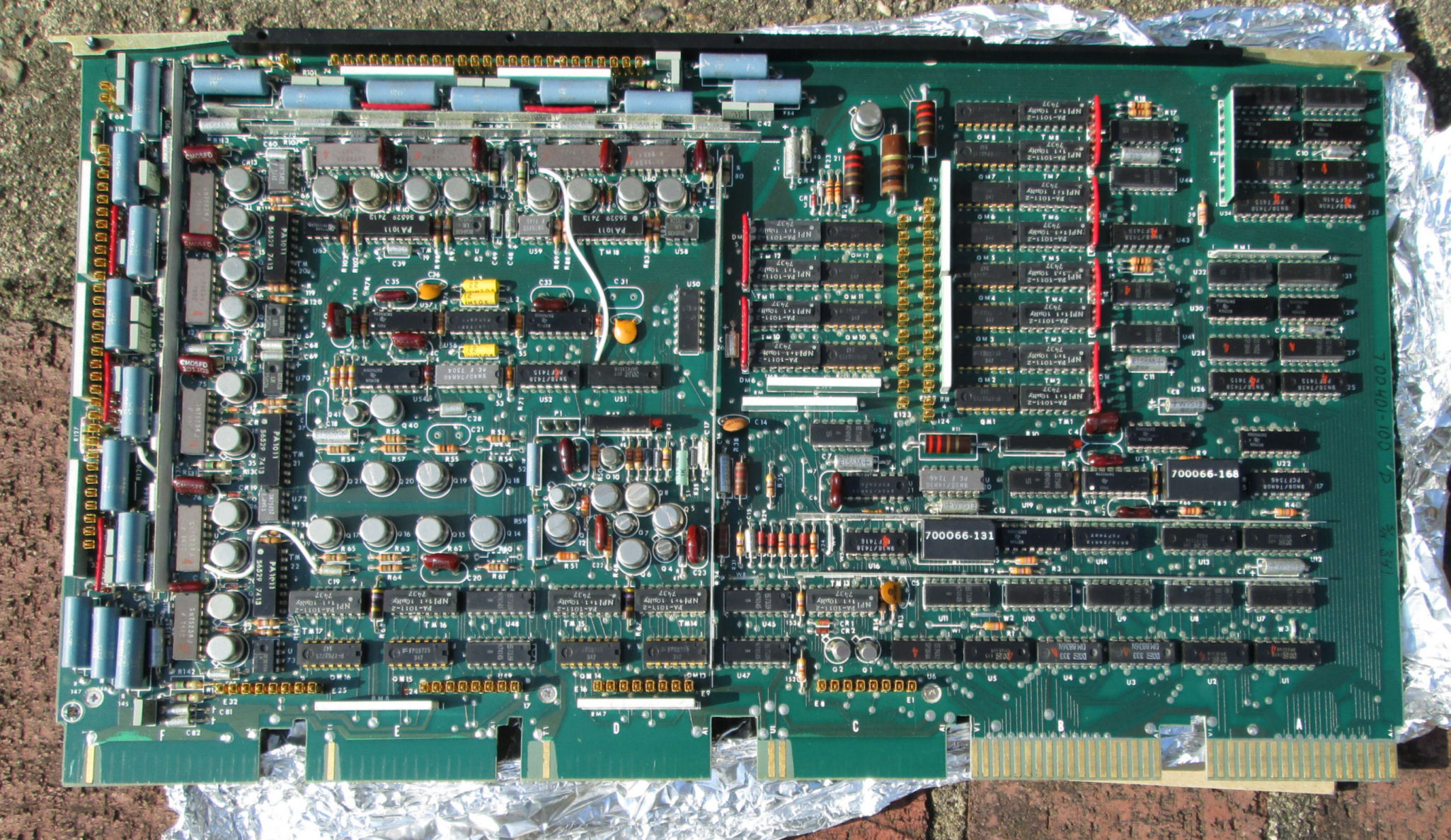

Among my core memory collection, in May 2009 I stumbled across this pair: a H219A core memory card and attached G649A Core x-y driver & sense/inhibit card. Don't know if they work of course; and "pdp-8.org"'s list of modules says this pair is too slow for an 8/E" and presumably for my PDP-8/F.

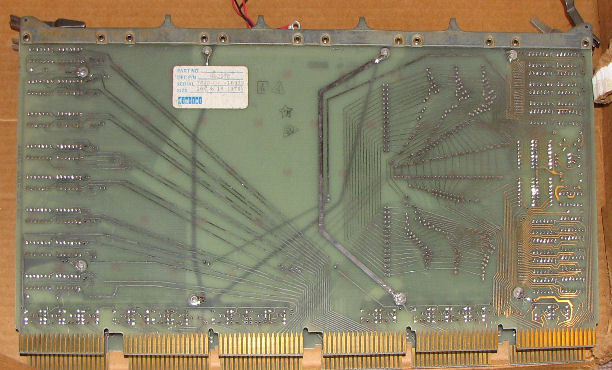

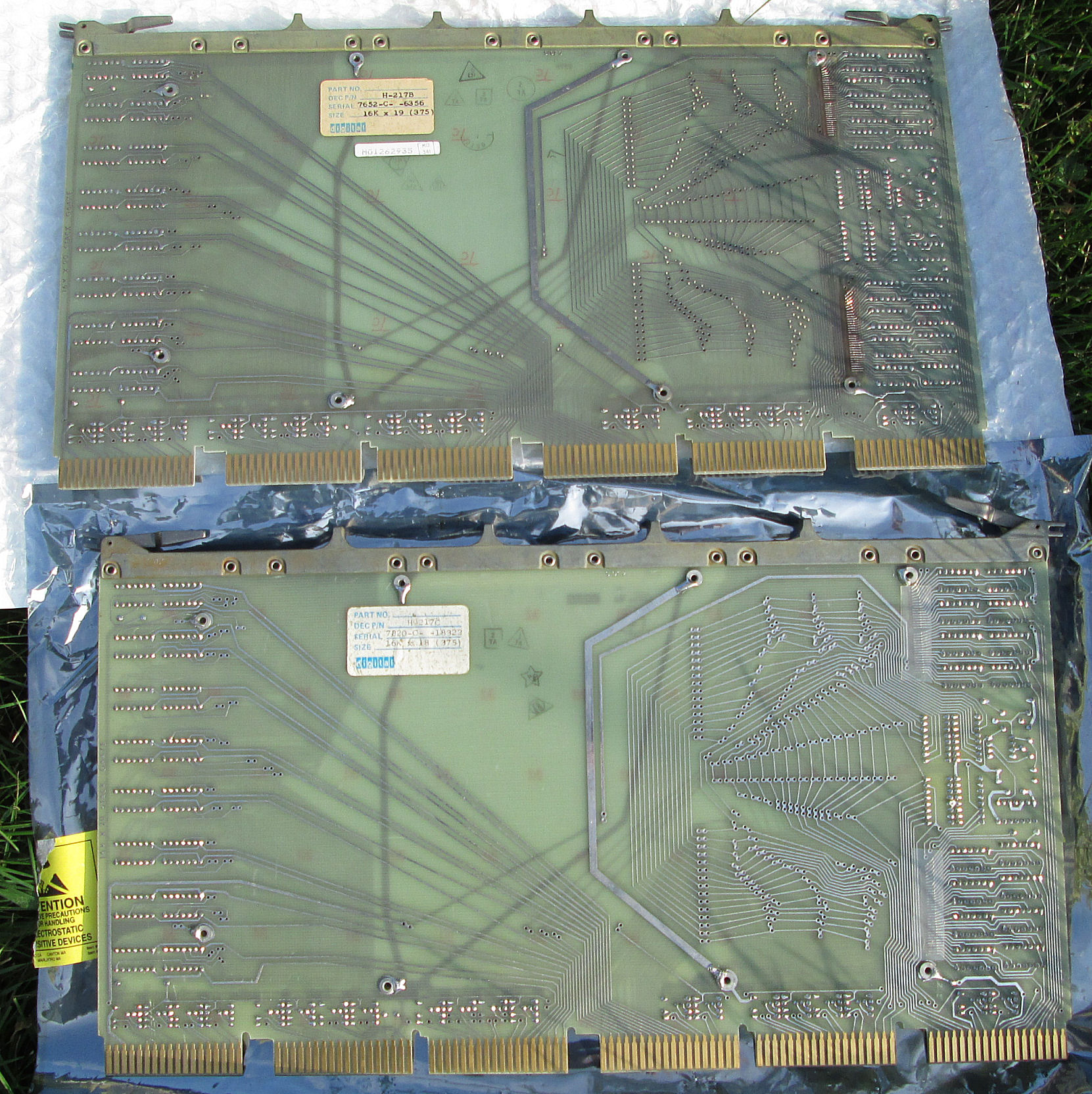

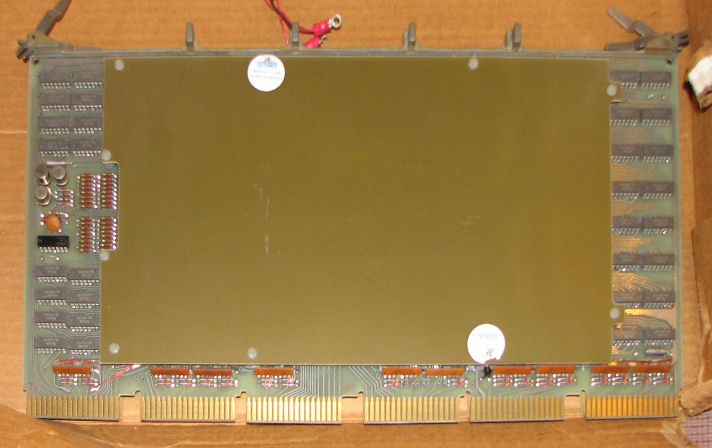

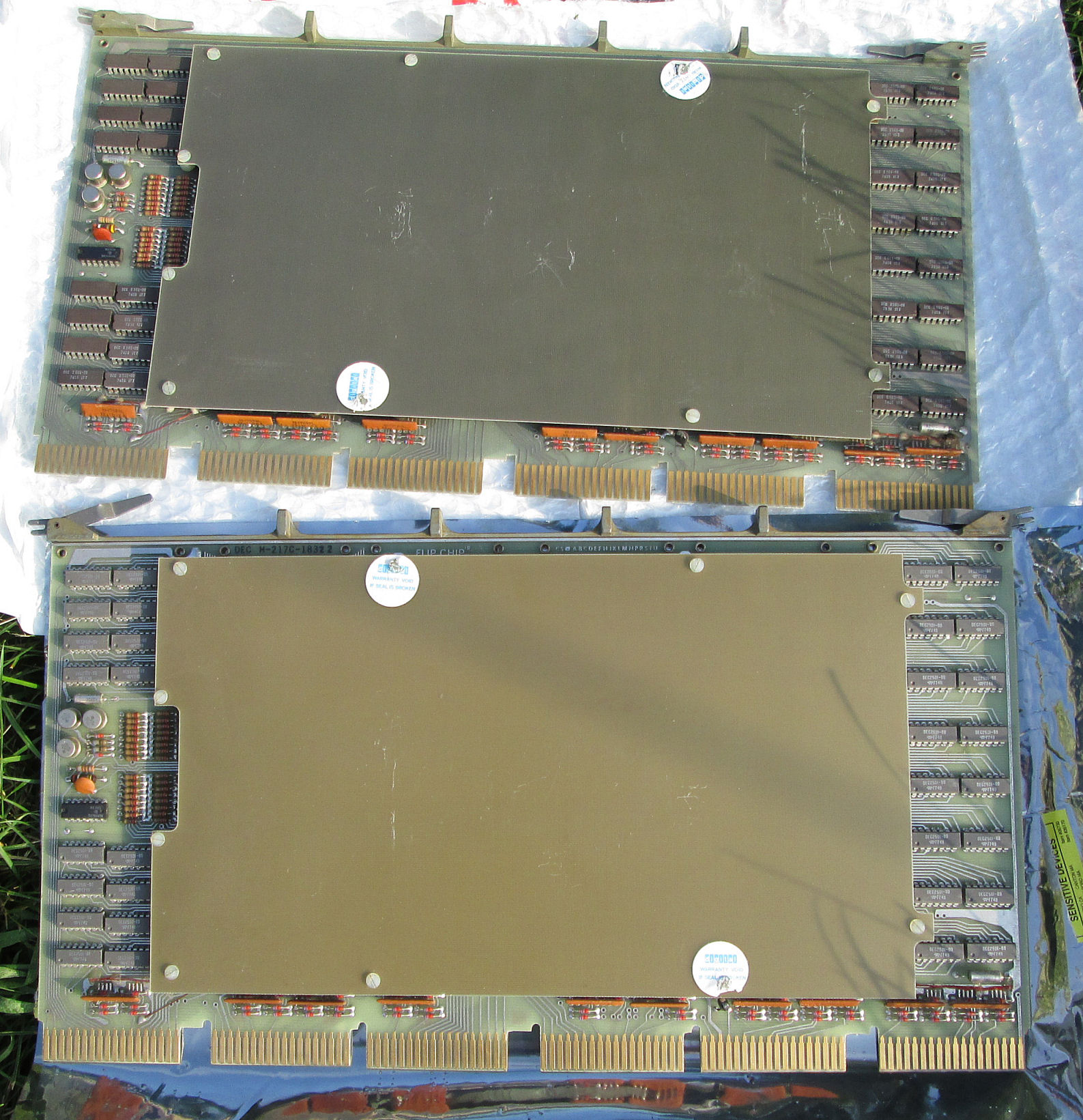

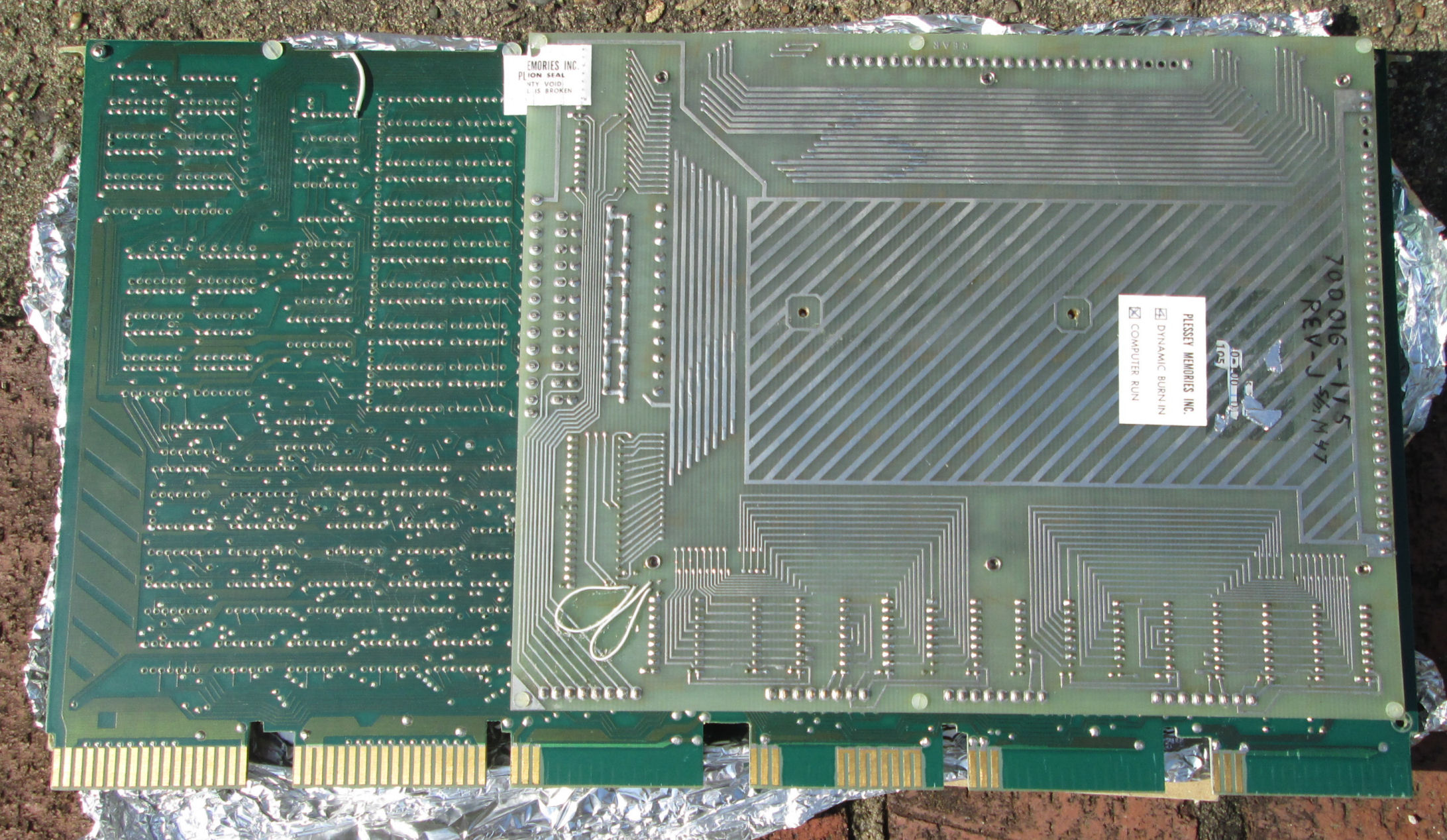

I also have two H217 PDP-11 core boards. One is a H217-B, one a H217-C. Here's the front and here's the rear of them. -B or -C look the same. The "lists" say "16-Kword 16-bit memory stack (with G114 and G235)", but I think one of these is 18-bit.

Vax 3500 system cards



I picked up a Vax system model 3500 a few years ago. It powered up and at the terminal displayed and provided diagnotics via the console serial port; it has 32Mb of RAM, an RK71 cartridge tape drive, a SCSI controller and a small internal SCSI drive, and some networking capability.

As of Sept 2005, I pulled the cards and power supplies. The card list is below:
Make offer for one or all cards, plus shipping
KA650-AA, two cards M7620-AA and M7621-AA, MicroVax IIICPU, w/serial console cable
(3)MS650-AA, the memory
DESQA-SA M3127-PA (thin thick Ethernet)
DELQA-SA M7516-PA, more ethernet?
TQK70 M7559-00, the tape controller
KDA50 M7164-00 dual SDI disk controller
KDA50 M7165-00 goes with above module
..and what is probably two power supplies, one from either end of the cage.

Data General systems

In late July 2005 I acquired four Data General Nova 4 systems. They were banged up a bit but appeared to be intact. They were set up for 220V AC operation. Indications are these were built in the late 1980's, they may have been operating in the mid 1990's. I sold two of them in 2007, and traded the other two (detailed below) in 2008. I've kept in touch with the person who has the two. If anyone else interested in them I can pass along any inquiries. The 2008 recipient intends to work on them.

For identification, read this quote from Carl Friend's site:

"Three models of Nova 4 were produced, the Nova 4/C, 4/S and the 4/X. The 4/S was the "standard" machine without a memory map and supported a maximum of 32 kW of mainstore. The 4/X, for "eXtended", had a map and could have up to 128 kW of mainstore. Hardware multiply/ divide was optional on both models. The map and MDV options were "adds" to the microcode control store. 4s came in both 5 and 16 slot backplane models. The Nova 4/C is a "compact" 4 which has the mainstore on the CPU card; the others used separate memory boards."

#3 Nova 4 system s/n E1134982 obtained fairly intact as follows: SOLD MAY 2006
interlan NI4010A ethernet card
MS-10 card, apparently serial/parallel card as described above
MCT-2410 from Microtech as described above
DGC 12V0 20711, CPU and memory card, 4 banks of 8 chips, 8116 RAM
power supply at bottom of cage 220 VAC

#4 Nova 4 system s/n E136518 obtained fairly intact as follows:SOLD MAY 2006
E-NEt PC10 ethernet card with 80C186 processor, (c)1992
MS-10 card rev AD, apparently serial/parallel card as described above
MCT-2410 rev Cfrom Microtech serial card as described above
DGC 12V0 20712, CPU and memory card power supply at bottom of cage 220V AC

Contact me if you have an interest in the above.

Terminals

Tektronix 4001 graphics display terminal. This is the small model, green screen about 10 inches diagonal. Got it April 2001, at that time it would power up but was not functional. These were used in the 1970's for graphics, X-Y or vector drawing not raster scan.

LSI ADM-3A terminals

LSI ADM-3A terminals, the little blue Lear/Seigler terminals so popular and cheap in the early 1970's! A few available, let me know of your interest, but we don't plan to give them away. These will have lower case text, display 80 X 24 characters, and have basic cursor control and scrolling. Here's a 2008-date WEb page about the ADM-3a.

Units we sell will be clean and working as described, with little cosmetic damage to cabinet and keyboard. Price will depend on the CRT display. Our "best CRT" will have modestly bright and unfuzzy text; our "good CRT" will have dim but usable text. Our "poor CRT" will have text displays or CRTs which are working but not usable or with a lot of screen burn - these are intended for CRT replacement. Please don't ask for "perfect" or "like new", these are 20-25 years old! We test for basic functions but we don't guarantee EVERY function or EVERY feature. Cover for DIP switches NOT INCLUDED.

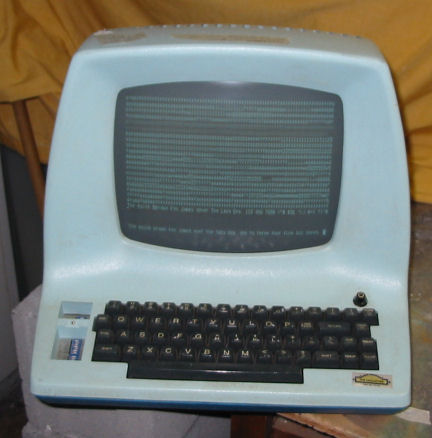

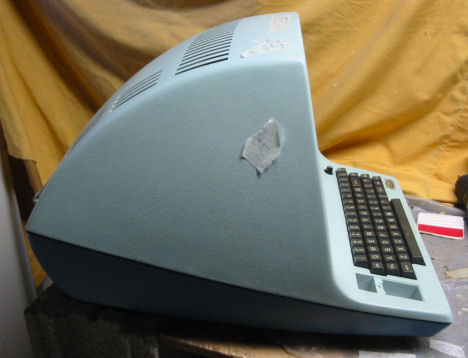

Here's some images of a "best CRT" ADM-3A terminal:
the front

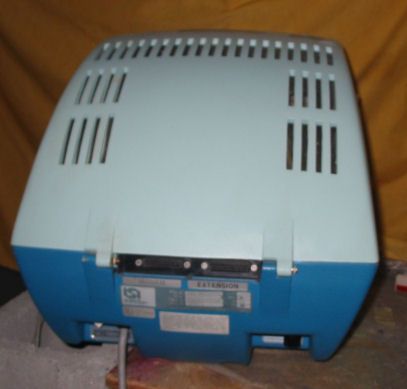

the back
the side

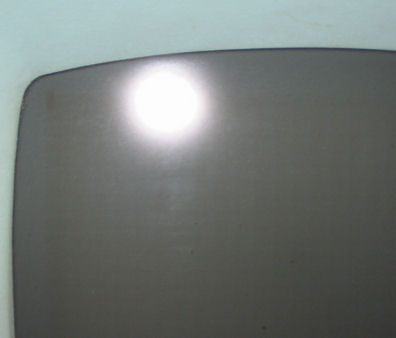

the CRT's light "burn in" It is less noticable than this photo suggests.

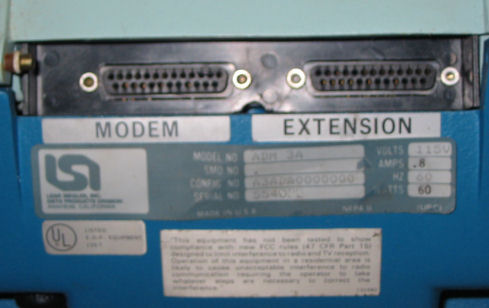

the back ID plate and connectors

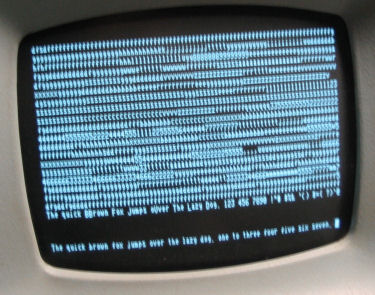

the screen with text displayed

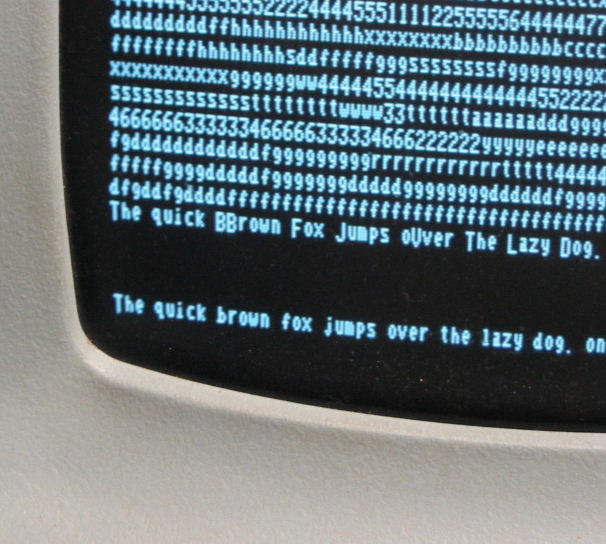

the quality of character display

Prices will depend on what we have available, our time available, and market value. But in 2009 a price for ANY ADM-3A would be no less than $149 plus shipping. We will also charge $15 for handling and packing, plus actual shipping costs. This covers packing materials and box, to protect these fragile CRT's in transit. THIS IS NOT A CURRENT OFFER OR QUOTE and WILL change. Shipping weight for an ADM-3A terminal is 45 lbs; that and your location relative to New Jersey USA will determine shipping costs.

For weak or cosmetically damaged CRTs, replacements have been available from a CRT vendor. These will have thinner fronts. The glass on these terminals is about 3/16 inch back from the cover. The CRT's on my ADM-3a's have an extra heavy (1/16 inch + thick) added glass plate "glued" over the tube glass. The "glue" seems to be quite thick (1/16 inches +), and over the years develops opaque "spots" or areas which look like "mold" but is probably not. Replacement CRT's can be made flush by adding a few washers, spacers, and / or elongating 2 holes in the original aluminum clips which hold in the tube.

The typical ADM-3A CRT is Samsung 12ZBY4N, white phosphor. If you plan to replace the CRT with a new/unused one, we can refer you to a source for CRT's. As of 2008 a rebuilt CRT was offered by them for $75 plus shipping. VDC1201DPWFBE (white phosphor) was one model they provided a 2008 customer. (Note: they shipped UPS and the first tube arrived broken. Advise them accordingly to improve packing, ask for double-boxing, consider FedEx.) For a fee plus CRT costs we MAY be able to replace a CRT in a terminal we sell you; but we'd charge labor plus cost of CRT and its shipping - over $100.

Some ADM manuals are available as photocopies, ask for costs of a copy:
..ADM-2 operator's handbook, polling descript. 80 pgs (half sized)
..ADM-3A operator's handbook, 50 pgs (half sized)
..ADM-3A Maintenance Manual, schematics, 110 pgs (full size)
Prices depend on whether you want full page copies, or half-page copies. Please describe the manuals and format you want.

Electrolabs ESAT 200B terminal card Docs only. 12 pages, no schematics.
--- also includes price list, 4 pages on 10MBy tape controller card.

Other terminal manuals:
Hazeltine 1400/1410 reference manual, 45 pages, no schematics.
