NuBus and earlier video cards
NuBus video cards
The following are NuBus cards, compatible with Mac II series systems and many Quadra, Centris, Performa and PowerMac systems which have NuBus slots. All cards have the Apple DB-15 video connector unless noted. Cards may not be currently available, ask. We also have some information on Mac monitors to compare these cards to. For other video cards, check my video section of my Mac parts page. For some Apple name and feature info, look at this info file on video cards..
Features of video: "Video" is defined by horizontal and vertical frequencies, and by "resolution". Also, by the number of available colors. Look these "video" terms up on the Web for what they mean, if you are not familiar with them. Briefly, higher scan rates for horizontal usually mean more resolution, some LCD and CRT type monitors can't accept some "frequencies" of horizontal scan rates. "resolution" means number of pixels per line, or number of horizontal lines per screen image. For example, "640 X 480" means 640 horizontal pixels per line, 480 lines per screen. "more colors" means more shades of color for each pixel. More memory on the video card provides more colors or more pixels.
For more information about video signals and how monitors "deal with" them, and so called "Mac to VGA adapters", read my Web page about monitors and about those adapters.
The following NuBus cards will work with most Apple 14-inch to 17-inch monitors; and with most modern VGA or some LCD monitors with a Mac DB-15 to VGA adapter. We can't warrent YOUR monitor's success. But cards are tested with a VGA-type non-Apple LCD monitor.
Radius Precision Color 8-xj (CLR8) 632-0115. .
Radius accelerated 8-bit Graphics I/F 632-0188-02 rev A4.
Radius Precision Color 8xj or 8xi, 630-0115. *OUT* 8-bit accelerated, ROM 1.31. 256 color,
640 X 480 or 1150 X 780. ROM supports 13" or 14" Apple monitors, Radius Precision Color 19in, multifrequency monitors, SVGA monitors. short Nubus card.
Focus Enhancements P/N 10038, thousands of colors 640 X 480.

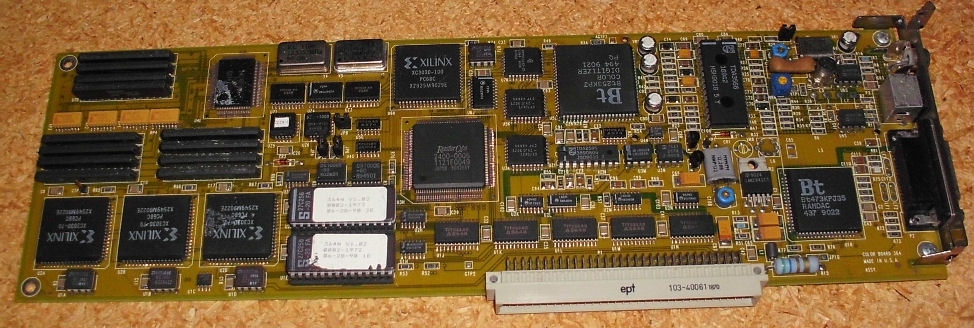

RasterOps True Color video board, "color board 364" long NuBus card. RasterOps 2400-002 chip. Bt473KPJ35 and Bt253KPJ chips. Has DB-15, Svideo and RCA jack connectors. May be input board, I do not know. Displays millions of colors at 640 X 480.
Apple High Resolution card, 630-4222, 630-4230. 256 color at 640 X 480.

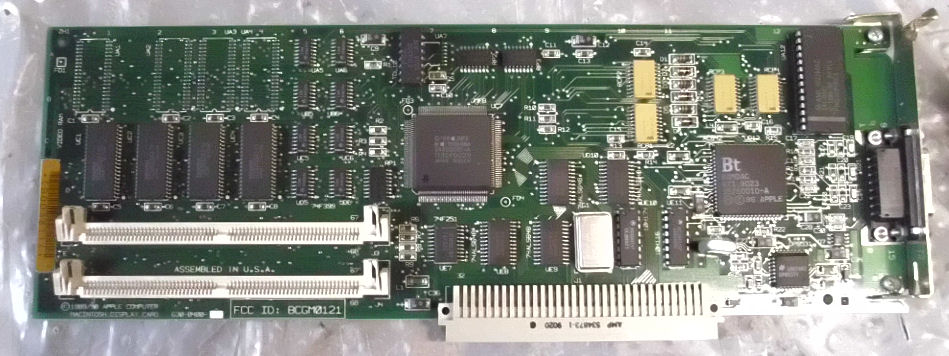

Apple Mac Display card, 820-0400, prob 256-thousands of colors w/two 68-pin (256K?) VRAM sockets.
*OUT* Apple Mac Display card, 820-0310-05, prob 256-thousands of colors w/two 68-pin (256K?) VRAM sockets.
Apple Mac Display card, 820-0600-A, millions of colors, no VRAM sockets. .
These work with at least Apple 14 and 15-inch monitors:
Apple Macintosh II video card, 820-0198, 640 X 480 16 colors, or 256 colors.
E-Machines, 030-1330-05, dated 1991, millions of colors.
These do not work with the 16, 15 or 14-inch Apple monitors or VGA: these
typically work with the monitor matching the card name and brand. Ask about price
Radius TPD II-M card, ROM 2.2, probably Radius two-page display
Radius GS/CM board, ROM 2.2,
Apple workstation/Portrait video card, 820-5037, probably for Apple Portrait monitor - OUT?
SuperMac Technology Graphix card, 9-pin & 15-pin connector, ROM 1.5.
Mac II Dual Page card, 9-pin connector, probably Apple Dual Page display
Nutmeg Systems video card, DB-9 connector,
Apple Two-page monochrome video card 820-5040.(Apple 13W3 connector), two cards
Apple Macintosh II Monochrome Video Card, 15-pin connector
Lapis Technologies Mac II Dual Page video card (9 pin DIN-9 connector),
Mac II mono Video card, 15 pin connector, 820-0285A

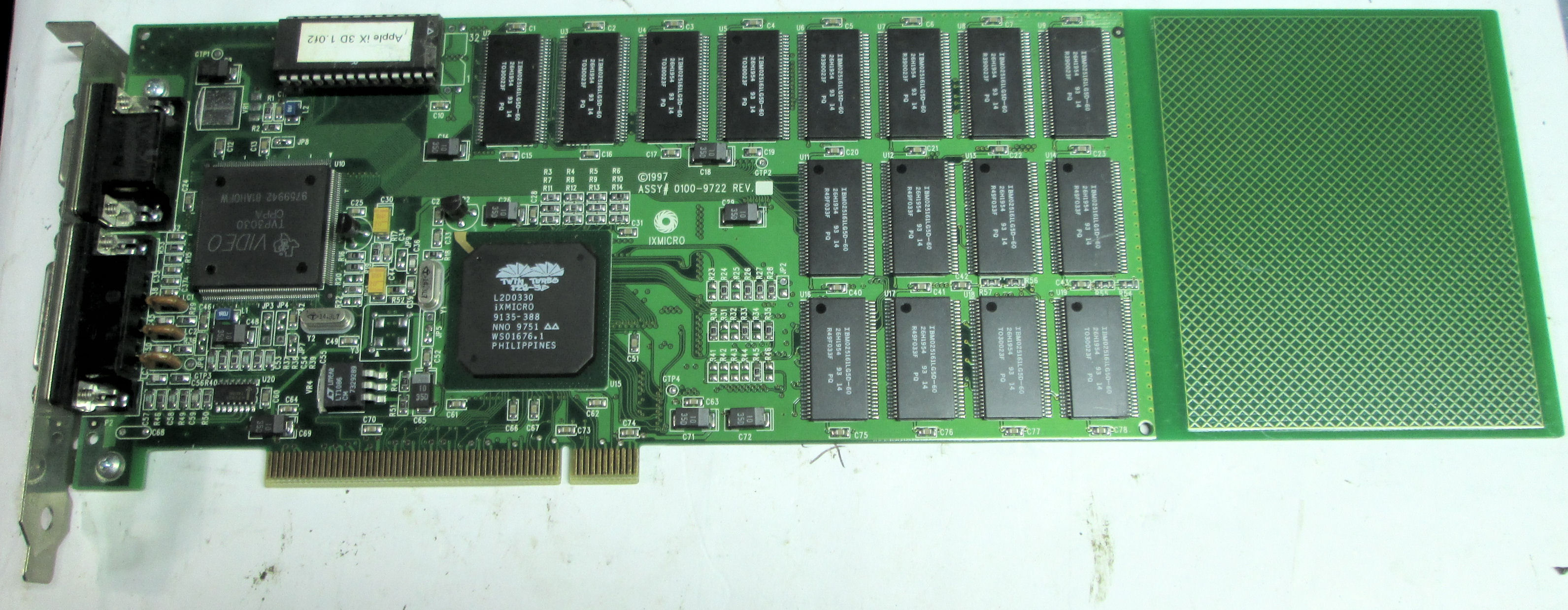

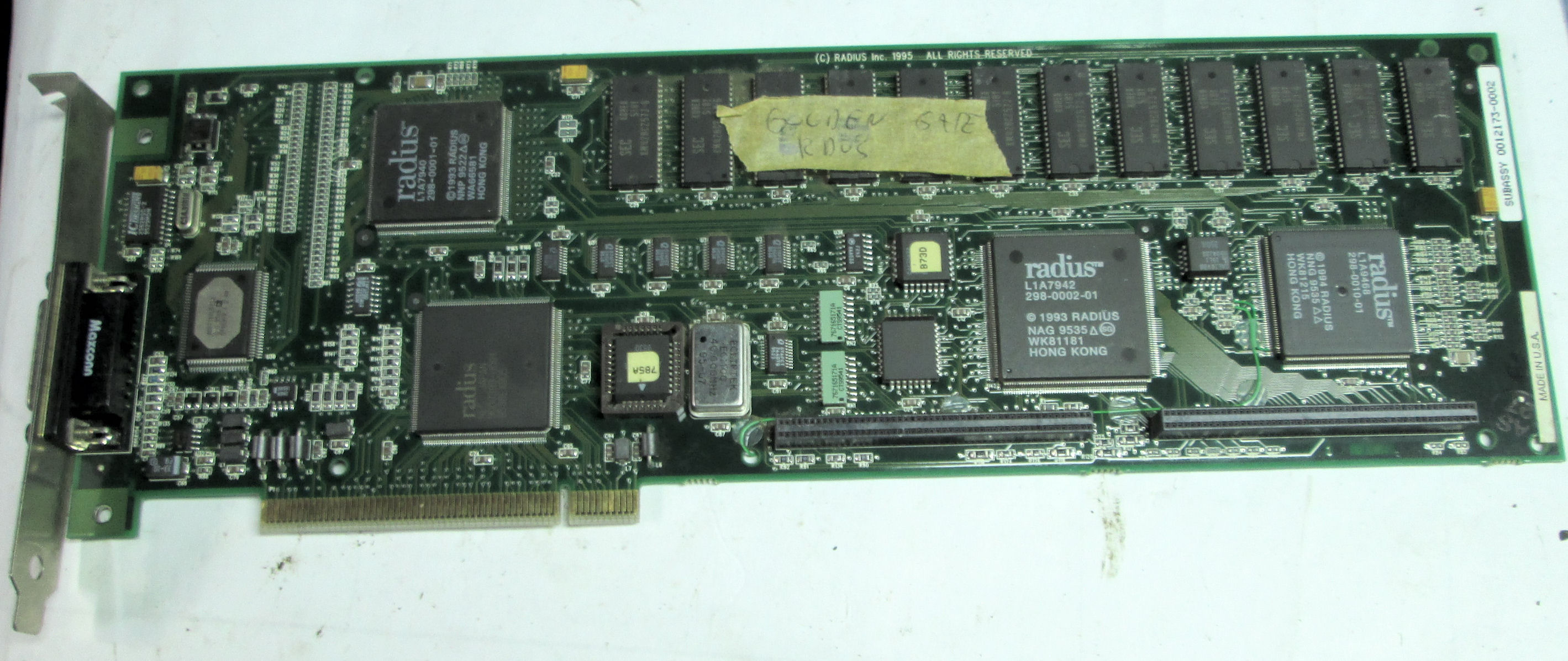

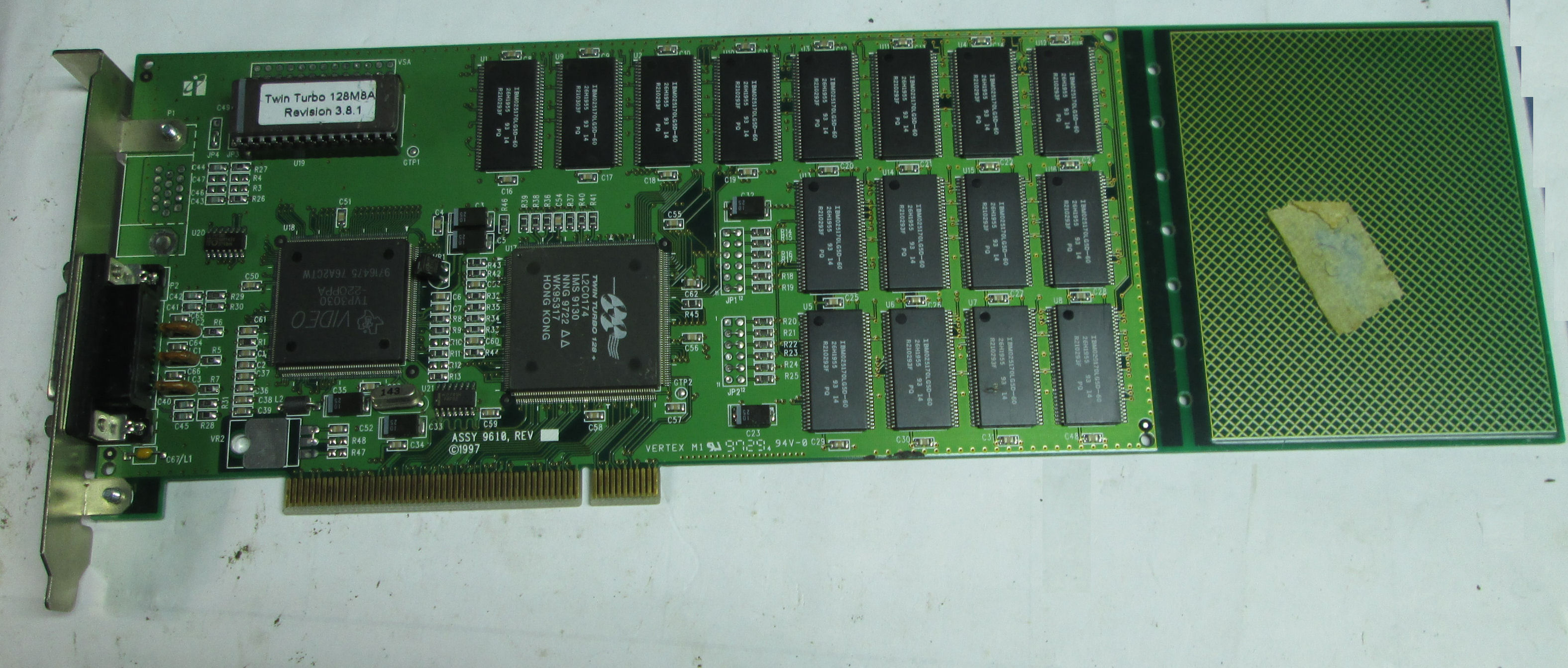

These are special purpose or high-resolution video cards:
truevision brand NuVista+ Video production card. 2MB RAM. Long NuBus card for quality video work. used but I have the box with card, books and diskettes. Also have VGA to BNC cables for those old monitors. Ask for price and details.
SCION VG-5 Video Frame grabber, rev A. NuBus. DB-9 connector. No software. *sold Oct 09* here's a Web link for info from April 2007

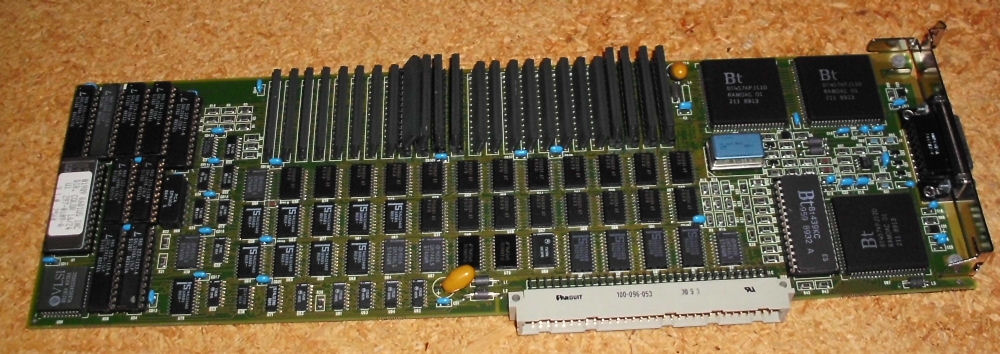

Radius Direct Color 16/24 video card 630-0105-B. BT439KC, BT457KPJ110 chips (RAMDAC?). DB-15 connector. Long Nubus card, untested. Two available. Apparently they only support Radius Color or Two-Page monitors at 1152x882 resolution.

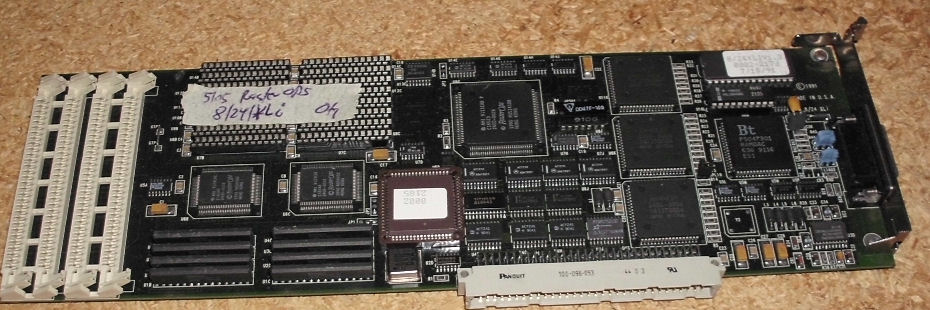

rasterops 8/24 XLi board. ROM says 8/24XL V1.3. Rasterops 2400-0026 chipand three 2400-0004 chips, RAM and sockets for RAM, DB-15 connector.
I"ve not evaluated these cards by monitor compatibility.
Clearview G5XL I have some HPV video cards for the PowerPC 6100/7100/8100 PDS slot as
follows below: these are not NuBus cards. (Note: The 6100 needs
a PDS to HPV adapter to support one of these cards.)
Check the Web site
I've referenced here for info related to these cards. (Note:
the 6100, 7100, and 8100 use a HDI-45 connector for their internal
video. Check my parts page for an adapter
to Apple's DB-15 video connector.)
Apple model 820-0522-A, HPV slot Video display card for the 7100, 8100.
Has four empty VRAM sockets for 256K VRAMS. Has 1MB on card already. Shows
thousands of colors at 640X480 monitor resolution.
With typical Apple DB-15 video connector. $25 each
Apple model 820-0509-A, HPV slot Apple display card.
Has 2Mb on board, more colors than 820-0522A card above.
Has four empty VRAM sockets for 512K VRAMs. With typical Apple DB-15
video connector. ask if available.
256K VRAM for 820-0522-A HPV display cards, 68 pin. Apple A/V card 820-0510-A, HPV slot display and SVideo card.
used on Apple "A/V" systems for the 7100, 8100 (and 6100 with HPV slot
adapter.) 2MB VRAM on board. This card has the Apple DB-15 connector for video,
plus two SVideo connectors for in and out. $45 each. 6100/610 PDS NuBus adapter bracket.

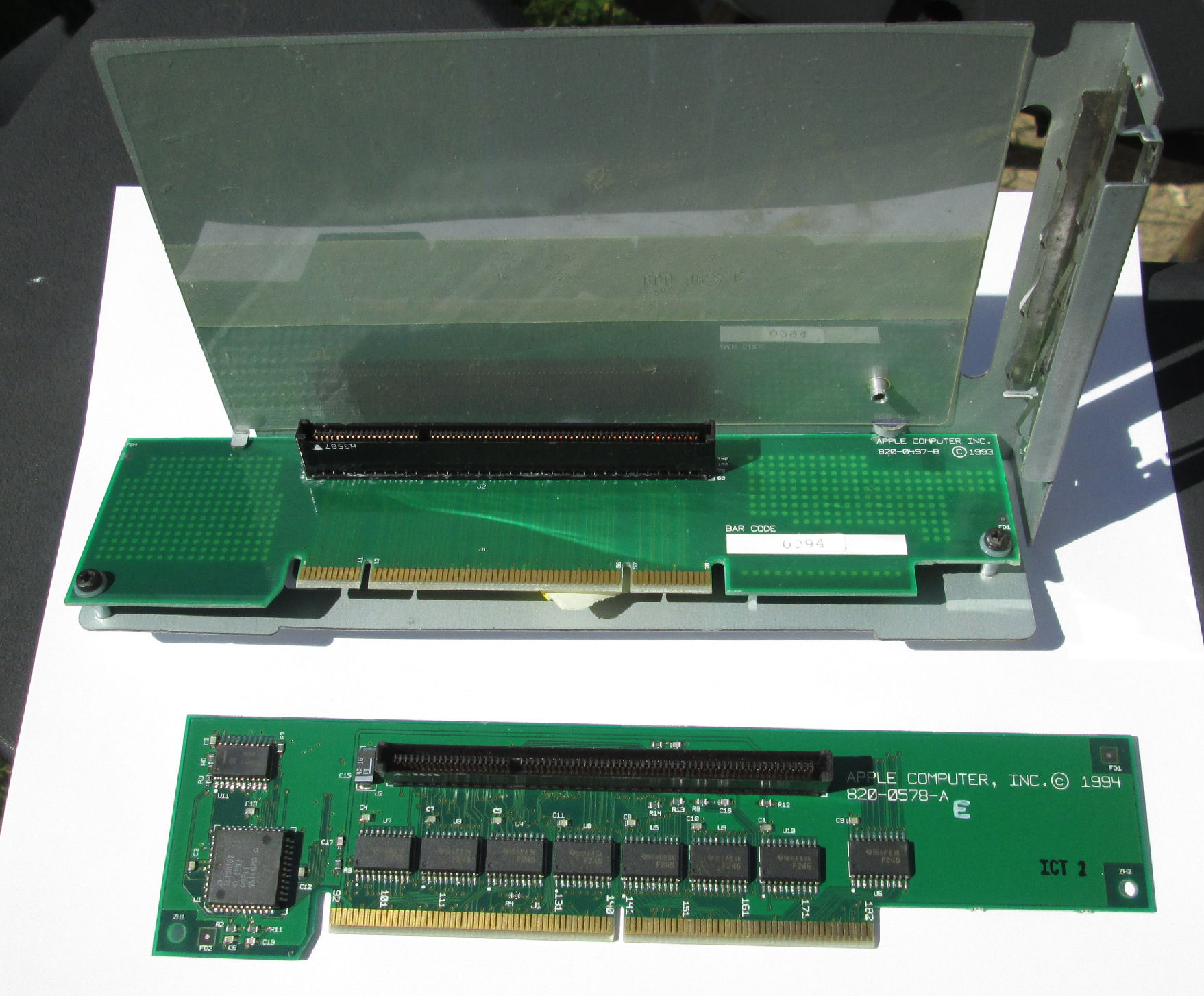

Service part numbers associated with bracket are 661-1718 922-0768, 661-0049. The
bracket works with 610 and 6100 slot-adapter cards. ONe card is 820-0578-A to adapt 6100 HPV slot to DOS Compatibility Card. Can't test, three boards and one bracket available. I have the TV tuner card for 630 and 6300 type systems, and for
6400 and 6500 type systems; and possibly for the earlier 5300, 5400, 5500
systems. Check my PowerMac page or
my 68040, Performa, etc. page for those systems
with the card included. Look for "TV" or "Svideo" or "A/V" as a feature
of such systems. Nubus or PCI video capture cards will be listed
on this Web page, look in those sections; and possibly as part of an
A/V system on the Mac system pages mentioned above.
For example, for the 630 or 6300 series of systems,I may have a TV Tuner card, model 820-549-A.
And I have the "Apple Video System" card
(820-0567-A) for the 6300 or 630 A/V slot for video input and capture.
Similar Apple Video System cards are the S-video
in/out (820-0737-01) and TV Tuner card (820-0549-A).
Also, Apple brand 820-0745-A card with video IN, an RCA connector and S-video connector.
also, Apple brand (monitor video) cable and board, with a DB-15 at one end , and a short PC board 820-0656 which fits a small slot on the mobo. Ask about this or similar cards.
I have a Avid Cinema USB video capture device, in the Avid package, for iMac. This
is an external device you plug into your USB port. Device with
sVideo and composite inputs and USB cable; Svideo cable; composite cable; manual. No Avid CD however. Device
recognized by USB as Avid Cinema but can't test without software. $29 plus shipping.
I get few requests for TV or SVideo cards. Some of them are with their respective systems.
Check my various systems Web pages to find these cards and a price with
system; or ask me to quote for the cards seperately.
The upper connector with many square holes is the "LC PDS SLOT" connector as marked in yellow at the left end. Typically cards for this connector mount "sideways" or horizontal, and are a few inches by several inches long.
The lower connector with a long single slot is the "COMMUNICATIONS SLOT" connector, as marked in yellow below and leftwards of that connector. Typically cards for this connector mount vertically and are only an inch or so tall by several inches long.
Apple and others offered "LC slot" cards for the models LC, LC II, and LC III, and a few other Mac systems. On the LC, this slot amounts to the PDS (Processor Dependent Slot) connector. Other Mac PDS items are listed either on this page, or on my Web pages specific to one model of Mac. LC slot cards are typically network or modem cards, sometimes video cards.
There were also "comm slot" cards for many Macs, which have one "comm slot 1" or "comm slot 2" connector. These are single slots on a Mac motherboard where, typically, one would add an Ethernet card or a modem card.
My LC and comm slot network cards are on another page.. A description of LC slot and comm slot Macs by model is on a text page.
Some years ago, I had a LC slot video card, the Spectrum/8 card for the LC PDS slot. Check
this Web page for features and software information. I no longer have this card but the information is useful.
IIsi Supermac cards
I HAD a IIsi dual-slot PDS adapter card. SuperMac 0007527-0001 rev B. Two right-angle PDS connectors on a PDS riser card. See below for card which uses this. It's probably too big for an SE/30. As of June 2022, gone!
I HAD a IIsi video capture card which needs the above PDS adapter or equivalent. Supermac 0007542-0001 rev B. Has RCA jack input, Phillips SAA7191WP video digitizer chip. No docs, no software. It's probably too big for an SE/30. Seems to be gone.
Video cards for the SE/30 PDS:
Lapis SE/30 video card for PDS slot: PDS/30 DPD by Lapis Technology Inc, 1990. Video cards for the SE: ask about price. When ordering, please follow this link for
ordering information, terms and conditions, and info about
orders outside the USA. Mac monitors and video cables have moved to my parts Web page. Some adapters and cards are listed in other sections with
our Mac systems. See the top of this page for pointers to those sections.
In general the items listed here are either priced or "make offer".
Sometimes I can be flexible on these prices as these are unusual devices.
SOme NuBus cards may be in my test and instrumentation Web page.

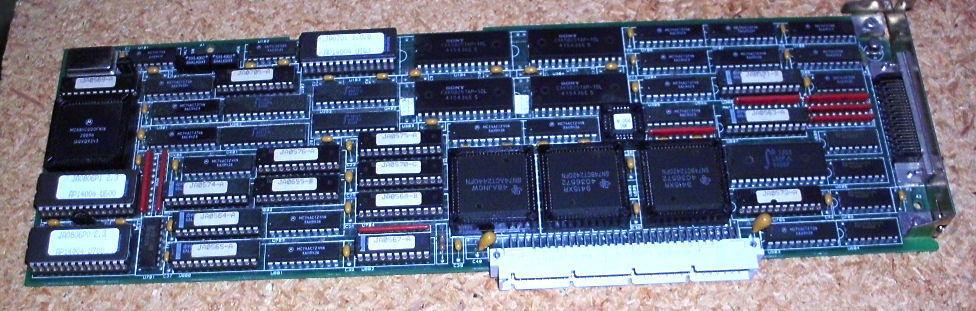

Nubus card, ECRM RIP Rasterops 2400-0026 chip and
three 2400-0004 chips. Two TI 74BCT2420FN chips, one TI 74ACT2440FN.
This long NuBus card appears to be for use with phototypesetters or
imagesetters. It has its own 68000 16Mhz processor and memory, and a narrow SCSI 50 pin external connector,
presumably to a specialized printer. The software associated with it (no warrenty or guarantee or license)
appears to be Harlequin RIP, from ECRM. You may or may not need a "dongle" to operate this card or its software.
The card when powered has several blinking LED's in various patterns. A Web search will find some
information on this card and related products. An additional charge if you want the software,
it may be on a hard drive or ZIP disk, and again no warrenty or guarantee or license offered for software.
Nubus card set, Texas Instruments TI Microexplorer. Nubus card with daugherboard of memory.
This was a TI product, marketed by Apple in 1988, a 32-bit Lisp machine.*SOLD Nov 2005*
"Apple Video System" for 5300 and 6300 series systems. This is
a two-card set with A/V inputs and a TV tuner. We pull these from
various Macs; check one of our 6300 series systems
to see if we have such a system. One video sysetm card (820-0567-A)
goes in the A/V slot for video input and capture. There is also a card for the
external video which mounts on the back of the computer. And there is
the TV tuner card (820-549-A) which takes a cable or antenna connection.
Working, used, without software: $35 plus shipping.
Mac SE card: GPIB or IEEE-488 controller .
This card controls an instrument bus also known as HP-IB. Many
Hewett-Packard electronic instruments use this bus. This card
fits into the PDS slot of an SE, and it ran under System 6. I've
pulled what I think are the drivers off that system, but just in case
I will sell you the card AND the SCSI drive (20Mb-40Mb). Priced to
move at $29 plus shipping.

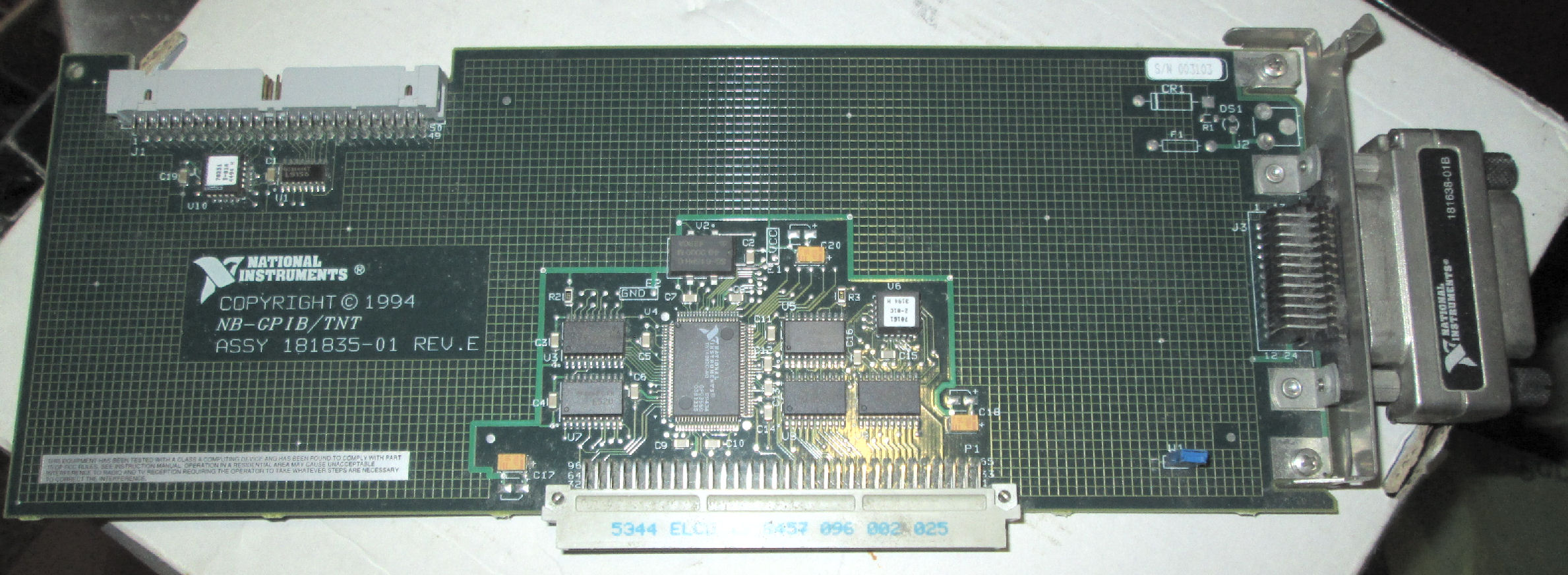

Nubus card: NB-GPIB/TNT IEEE-488 controller from National Instruments.
This card controls an instrument bus also known as HP-IB. Many
Hewett-Packard electronic instruments use this bus. This card is a
NB-GPIB/TNT a long Nubus card. The card's model number is
"181835-01". No software or drivers from me, check the Web.
Looking for offers. One GPIB extender to get the GPIB connector well
past the back of the Nubus cage. three cards available as of April 2020
Also GPIB from National Instruments are: For more IEEE-488 devices, check our
odds and ends page.
Nubus NB-DIO-96 digital I/O card from National Instruments.
Short NuBus card with long data connector on card bracket for external cable.
Designed year 1991, Assy 181565-01 rev A2.
Nubus NB-DIO-32F analog &digital I/O card from National Instruments.
I have two NB-DIO-32F cards: 180505-01 rev D3, 180505-01 rev D2. Long Nubus card.
Here's a photo of one.
Strawberry Tree brand Analog Connection M2 or ACM2 NuBus card.
(Company bought by IOTech.) May be part of WorkbenchMac package (not included). Copyright on card
1987, on lable 1992. 50-pin flatcable connector on outside end of card. Numbers on
card: 113-2-6 113-4-6. Mostly small CMOS digital chips, but also AD7545AKN chips. If
you have tech info I'm interested, or you can buy the card! Make offer.
Becton-Dickson "Mac Acquisition card" Long NuBus card. with 68020/16
processor on board. has external many-pin connector (3 rows) and internal
20-pin socket card connector. card has numbers ASSY 03-20061- Schem 07-20061-
10-20061-05. Make offer.
Nubus card by CSI, dual serial ports ROM on card says "Hustler Rev 3.383
Copyright CSI 1996". Has what looks like two Appletalk/serial ports on
back, driven by Zilog ESCC (serial) chip. 68008 processor on card as a local
controller. No docs, no software, just the card. Tell me what it is and what
it is worth!
Apple "Emerald City" PC Drive card, NuBus card to drive external PC floppy
drive (DB-37 connector). Apple 630-4161, 820-0213A. We also have an Apple
5.25 inch drive! We tested these in May 2012 and they work ("PC File Exchange 7.0" under System 6). What's it worth to you?. Macintosh SE-bus PC Drive Card from Apple, 820-0241-A. This
appears to be a card that plugs into the SE PDS socket, and which provides
some kind of PC-compatible floppy disk interface. Cable comes out of back
of SE with DB-37 connector, presumably the same as used by the old IBM XT
for external floppy drives. No docs, no software, not tested - have fun!
Make offer. We also have an Apple 5.25 inch drive with 37-pin connector.
Also: Macintosh II PC drive card for NuBus. , 820-0213-A. Apparently
operates a PC compatible floppy disk drive, like the card above. DB-37 connector.
Make offer.
For the Mac SE: Mac ADIOS card, possibly an HP-IB or IEEE-488
device for the SE. Plugs into the PDS slot, has connector for back of SE.
I also have pulled what may be the "driver", a desk accessory for System
6.0.3; and the 40MB hard drive. Let me know what all this is worth to you.

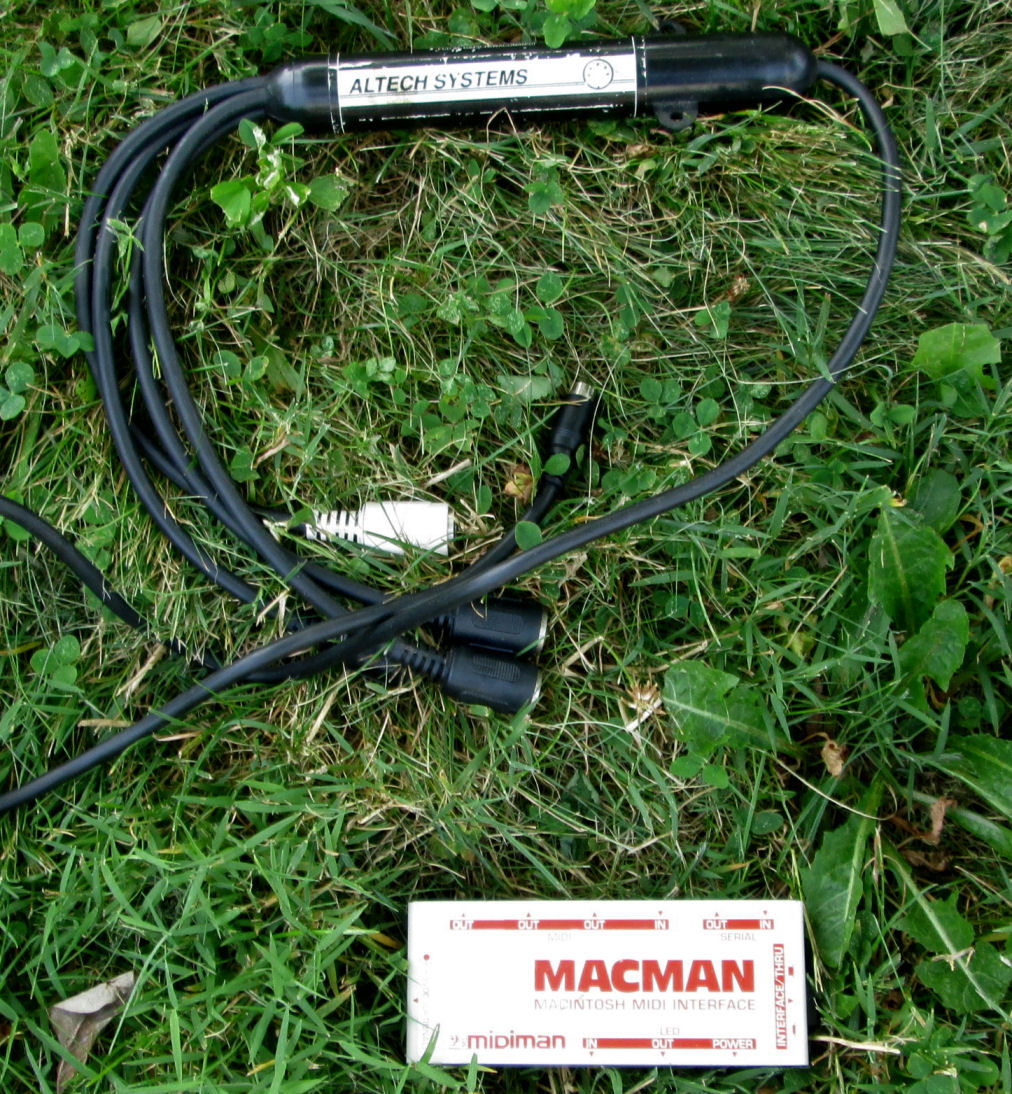

Non-Apple brand MIDI devices. Altech (sold)
and MidiMan.
Midiman brand, MacMan Macintosh MIDI interface. Just the interface module,
no cables or 9VDC power supply. Has connectors for Mac serial/printer/modem
miniDIN-8 cables, and two five-pin DIN MIDI connectors. Sold as is untested.

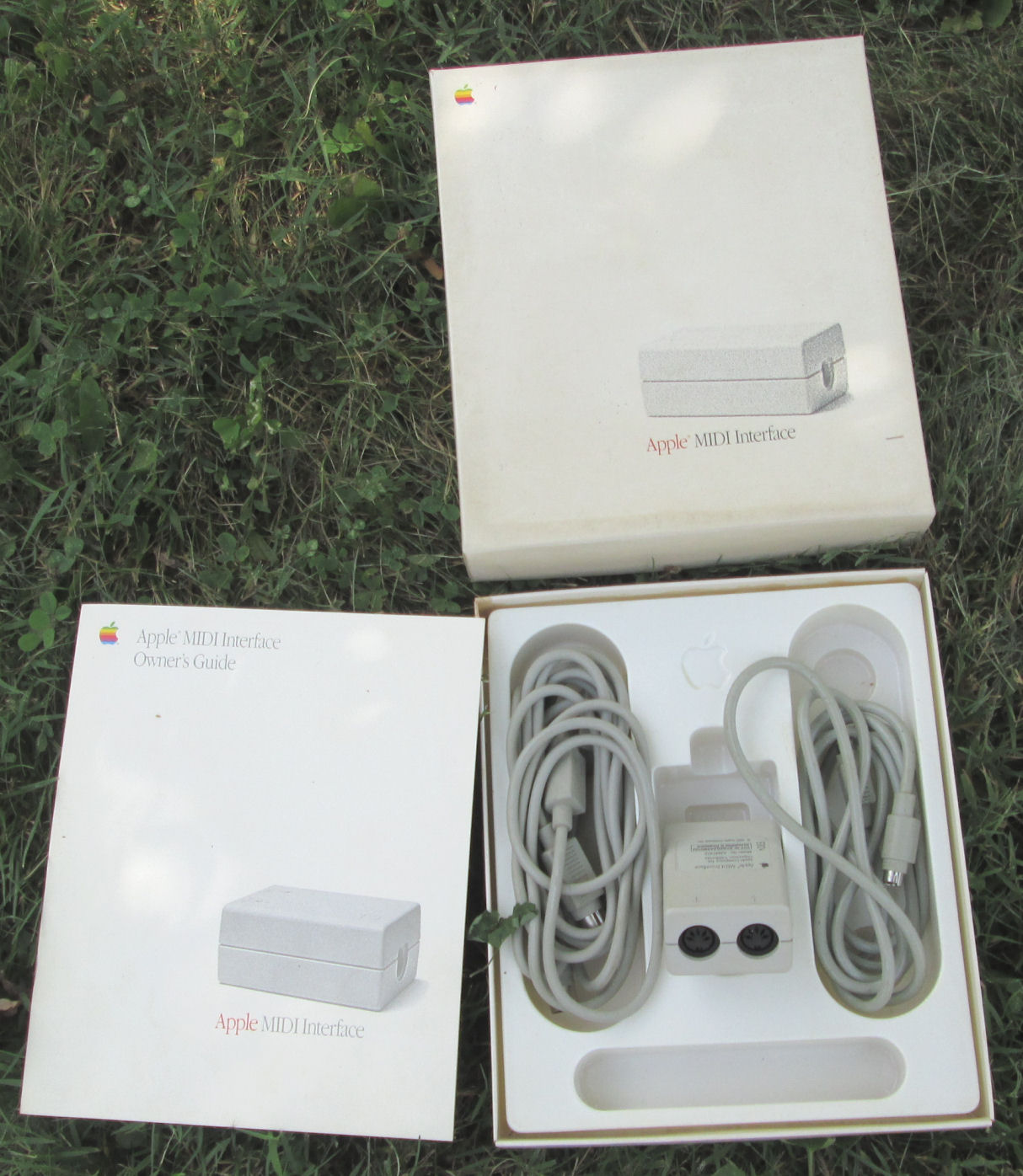

Apple MIDI interface in box, A9M0103.
I have one boxed set, contains owner's guide,
two DIN-5 MIDI cables Apple 590-0576-A, one Apple mini-DIN8 cable
590-0552-A, interface module A9M0103. Box is clean and cables
still tie-wrapped, also has packing list and warranty card. NuBus data acquisition card: Becton-Dickison Mac Acquisition card,
assy 03-20061, made probably in 1994. No docs or software, sold AS-IS
untested. Long NuBus card with 68020/16 processor, several custom
chips, ROM and RAM. Has 62-pin DB connector to external world. If
you need it, it's just $29 plus shipping.

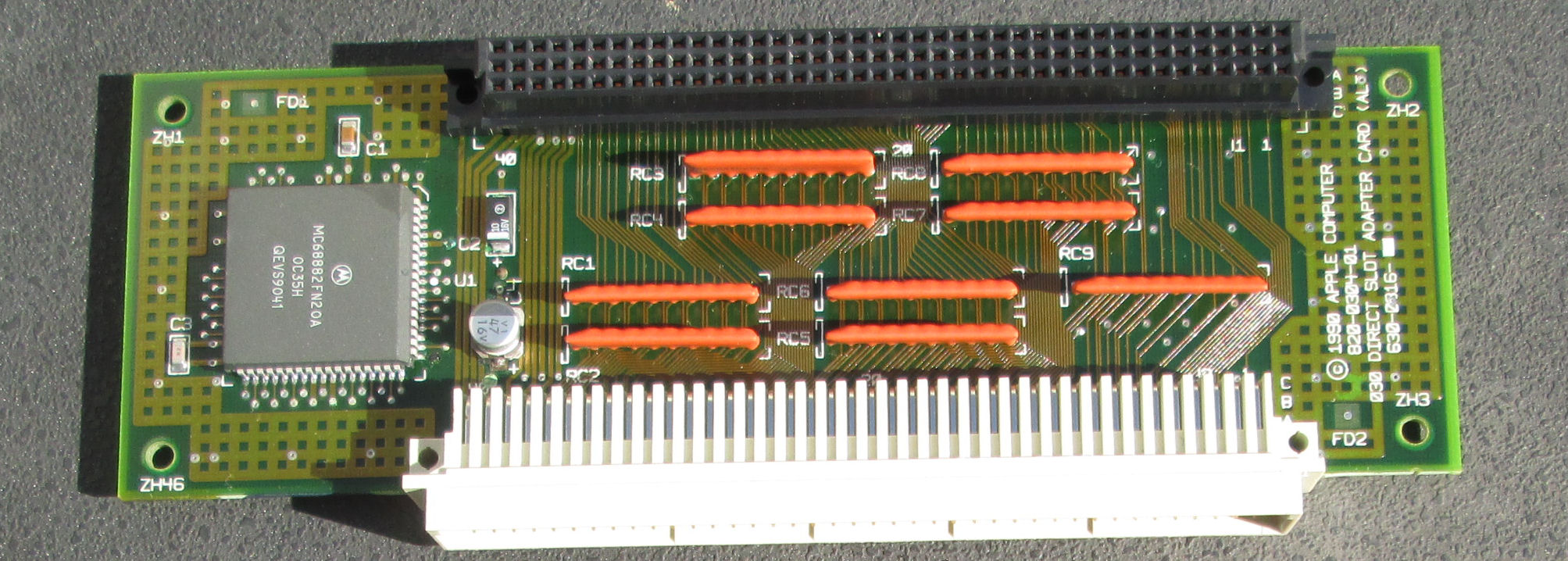

Apple Mac IIsi NuBus adapter with CPU cache, 68882-20 math coprocessor,
processor cache memory. Model number 820-0303-02 or M0481LL/A. Allows you to
add a small NuBus card to a IIsi, it fits on the PDS connector.
Includes small card cage to support one short NuBus card, for instance a network card
or video card or other NuBus card. I don't see how it could work in an SE/30,
but it has the same PDS slot as the IIsi. Used, tested, $59 plus shipping. One UNUSED in the box
may be available at a higher price.
PowerMac 6100 PDS to NuBus cards. An adapter which plugs into the
PowerMac 6100 series PDS connector, which provides a NuBus slot on a
right angle so a NuBus card can be mounted parallel to the motherboard
or logic (and still fit in the flat 6100 case). Check to see if we have
these available.
Processor upgrade options or accelerators may provide features like
cache memory (faster program execution), NuBus expansion,
68881 or 68882 FPU's (math coprocessors or coprocessors), processor speedups or
new processors. Most of these cards are specific to one Mac model or series of models.
Also, check my network card WEb page, some network adapters
include a math coprocessor. Note: SOme buyers of accelerators report problems of various sorts - crashes,
no startup. Your problems may be due
to memory issues. For instance, your current
memory may be too slow for an accelerator. Before ordering, please consider
checking the RATED speed of your memory. The only way to do that is to
physically look at the CHIPS on your memory SIMMS or DIMMS, and read off the
last few digits of the chip's identifying number. Typically that number will
end in the following: 12, 10, 08, 07, 06, 05. THose indicate speeds of
120ns (nanoseconds), 100ns, 80ns, etc. Give me that info when you order.
This sounds tedious but it may save you time and fuss later.
probably sold, ask - Radius PhotoEngine NuBus card - very unusual!. Card ASSY 632-0213-01. Not a video card but a COPROCESSOR card, with four AT&T 3207F02 DSP processors. Used with Radius software to accelerate Adobe Photoshop on "slow" NuBus systems. Check Vintage Box Radius RISC Quick Color processor card 630-0035-B. Board says "Radius RISC processor board". ROM says Quick Color 297-0041-A Long NuBus card with eight 6264 RAM chips on it. Two available. This is a MIPS
6M instr/sec processor with local RAM, to support 32-bit QuickDraw on Radius video cards. Web search finds details.
Daystar FastCache card, cache memory for IIci. PLugs into cache socket. $49.
I have one Daystar numeric coprocessor card for the LC or LC II, it
plugs into the LC's PDS slot. $25. Otherwise, many LC slot cards include a socket
for a 68882 coprocessor. Check my Mac card Web page for LC slot cards.
Daystar Digital Mac II upgrade, plugs into the CPU and FPU sockets. Has 68030/50 CPU
and 68882/50 FPU board, also a RAM card. Will be priced at least the value of the socketed CPU and FPU.

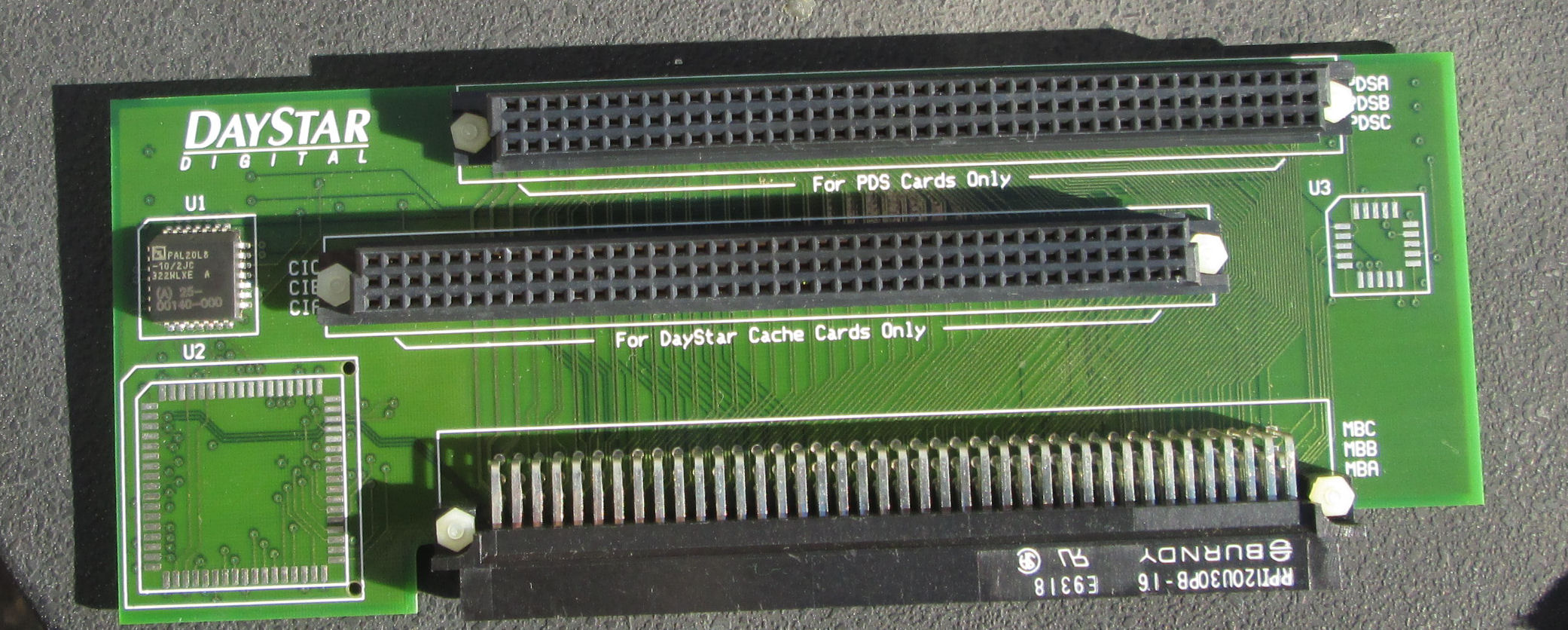

Daystar PowerCache card with Mac II adapter. Has 68030/33 CPU and 68882/33 FPU. Adapter plugs
into Mac II CPU and FPU sockets.
For PowerMac G3 accelerators, check my G3 and G4 Web page
Apple Power Macintosh Upgrade Card for the 68040 PDS slot. I do not have this card currently.
but here's some specifications I've gathered.
This card, pulled from a Quadra 700, has a PowerMac 601 40MHz-60MHz processor.
Later versions were known as the Daystar PowerPro.
Apple's Web site says this card M2843LL/A is compatible with the
following 68040 computers:
Quadra/Centris 610 (w/ PDS angle adapter); Q 630; Q 700; Q 800; Q 900; Q 950.
The PowerMac card has a PowerPC 601 Processor with 256K level-2 cache,
expandable (or may have) 1MB. Speed 50MHz nominally, but
it will run at double the clock speed of the host system,
from 40Mhz to 60Mhz, under at least System 7.1.2. You use the Power Macintosh
Card control panel to turn the card on and off, a useful
feature when your software may need the '040 and its numeric
processor. I do not have this card currently. Apple Mac IIci CPU cache card, $35. Provides small speed improvement by adding
processor RAM cache, just plug in cache slot!
Apple IIe card for LC slot Check the Web for details. This card plugs into the LC slot of various Macs and runs Apple II software. It has
a special connector for a Y-cable to connect to joysticks and Apple II drives. As of May 2012, we do not hve the cable or card available.
In the last several years, most requests to me for CPU chips are for faster processors to upgrade 68040 systems. If you want a faster CPU card for a PowerMac, check either my
G3 accelerators or look at the
PowerMac page for faster Apple CPU cards.
I have some 68040's as removed from systems or old-stock - not "imports". These aren't recent purchases that may have been remarked. Generally I test a 68040 before sale (not always at rated speed). "LC" means the processor does not include the math coprocessor ; those aren't usually requested. Prices below do not include shipping packing handling, I'll add to pack with care. Also check my Web pages for chips on accelerators & specific Mac motherboards. Prices as of Feb 2022 (which may change) are: 68030 processors: ask for specific speeds. Look at my older Mac pages for motherboards with the desired chips.
68881, 68882 coprocessors: ask for specifics, but look at the systems which normally
include these. Prices depend on speed, package. The 68882 coprocessors for many of the 68030 systems used a PLCC package (square, pins wrapped around the edge) for the chip, and the chip is inserted in a socket. Most times the socket is in a network card, so check our network card page for the network card appropriate to your system. Some Macs used the PGA package like the package photographed above for the 68040. Be specific about the package and speed required.
If you want to improve hard drive performance, one way is to install Apple's SCSI upgrades. Apple had an upgrade for its "servers" which was a SCSI-2 PCI card and various SCSI-2 hard drives. These provided faster drive access and used more advanced drives than their SCSI-1 on-board controller and SCSI-1 drives of the era. Take a look at the controllers and drives on this Web page for details and prices.
Copyright © 2023 Herb Johnson
Emachines or E-machines 029-1529-02
Emachines 029-01329-01
Lapis ProColor Server 24, Focus Enhancements p/n 10038
PDS Video cards, DOS Compatibility cards
512K VRAM for 820-0509-A cards.
prices are on my Mac Memory Web page.

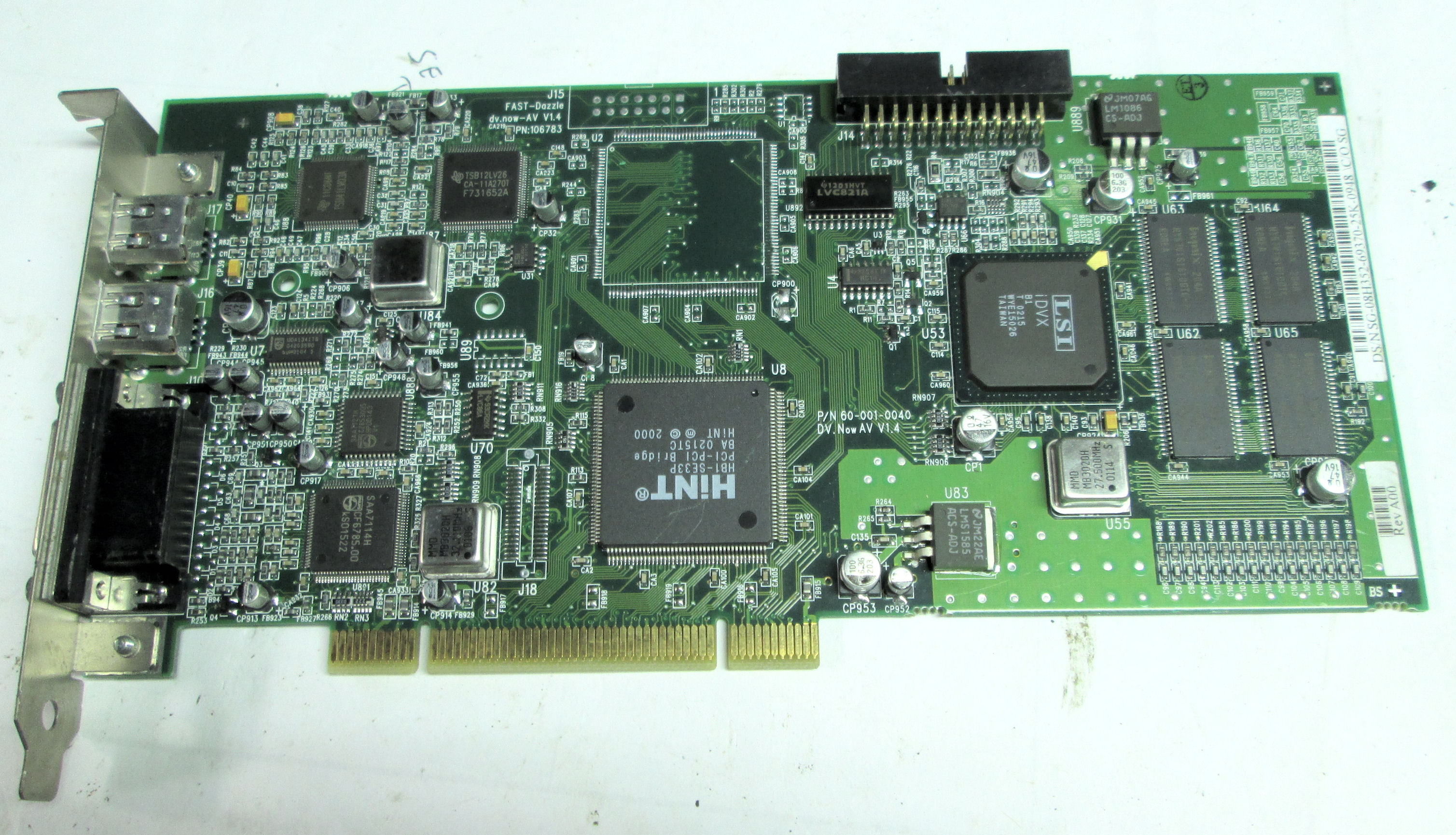

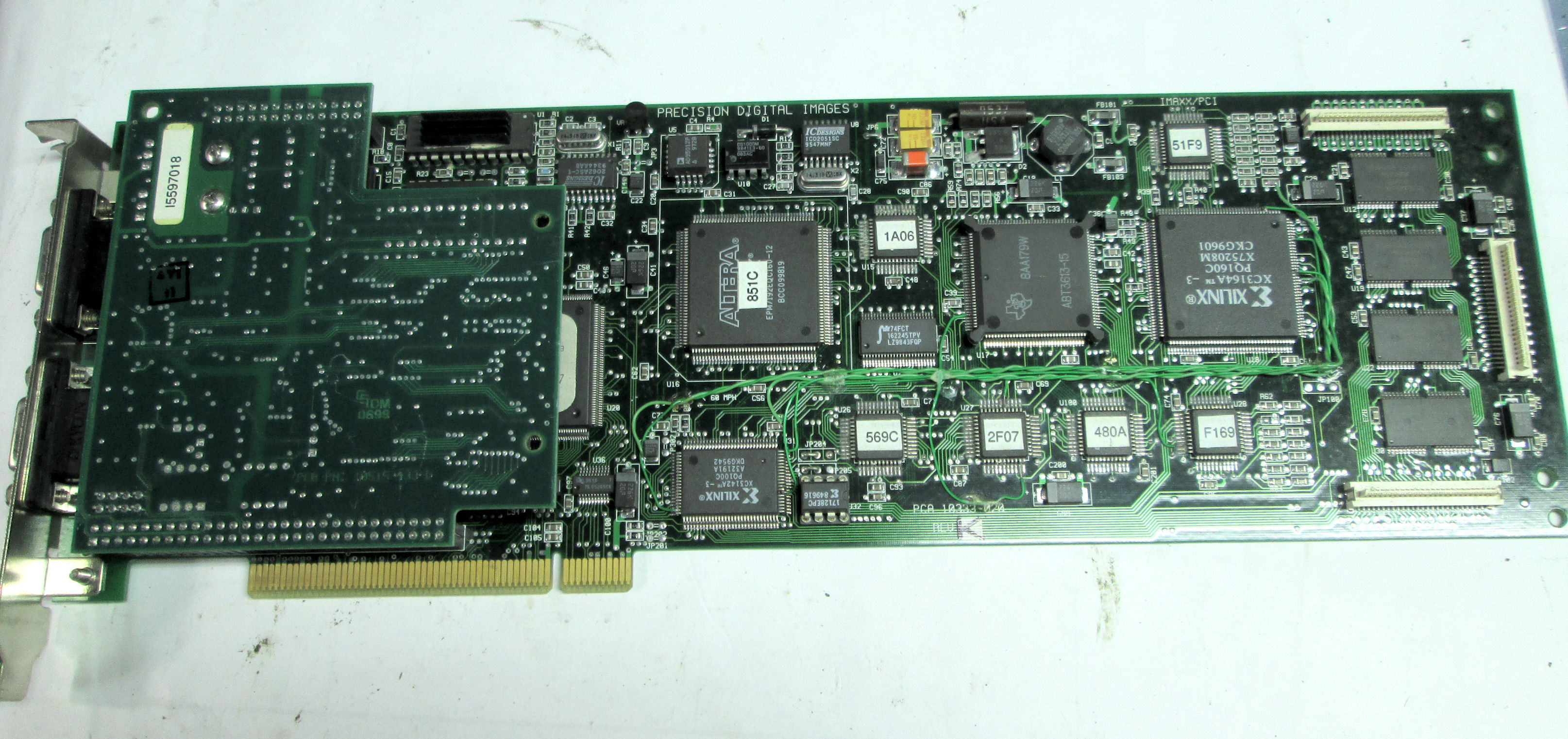

Video/svideo/TV cards
LC slot, comm slot cards
![[LC slot, comm slot]](lc_comm_slots.jpg)
Compact Mac video cards (not NuBus)
I have a number of video adapters for the SE and SE/30 (SE\30) by Radius
and other manufacturers. These
are monochrome (not greyscale, not color) video for specific
monitors like the Radius TPD or FPD. I have similar items for a few other
manufacturers. Most of them have software in ROM and will start up without
additional software. They were tested and working when pulled. This is all
I know about them, search the Web for more info.
DB-9 video connector, ROM, card says "P/N 10006 rev 3 scb/kcf/rds"
Focus Enhancements says this is a monochrome card for Dual Page Display 19-inch monitors.
I have one or two of these available, ask for details.
Note: unless noted, these SE Radius cards need a Radius Magic Bus adapter 630-5010-A for the SE, which we have available.
Radius MPD/SE, video connector not available, two wires.
(2) Radius TPD. BNC connector
Radius TPD/FDP-ASIC, BNC connector
Lapis Tech. Inc display server. 9-pin and 15-pin connector
Video cables and adapters
Mac & VGA video adapters have moved to my parts Web page.
Other cards and adapters: GPIB, audio, MIDI, etc.

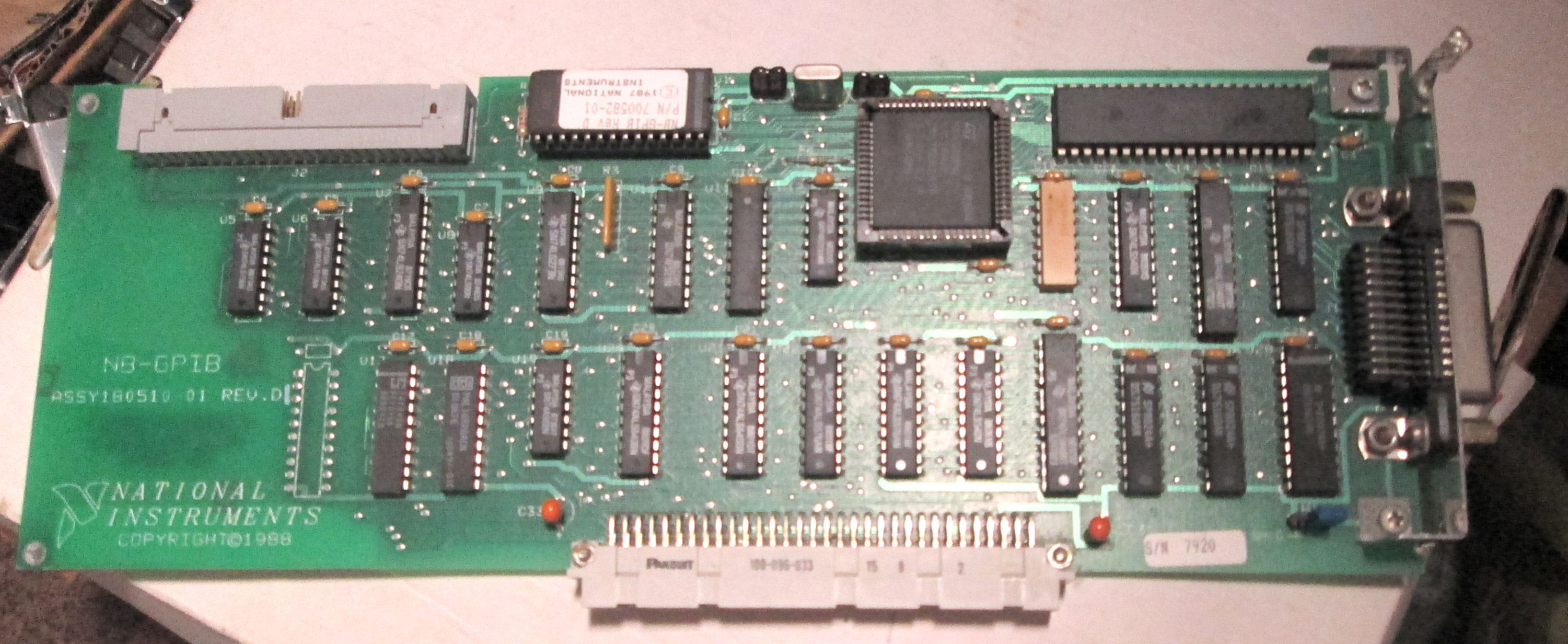

NB-GPIB nubus card one available
NB-GPIB-P/TNT nubus card a shorter card, OUT
Some cards show a removable GPIB extender to get the board's GPIB connector further from the Mac case.
MIDI adapters
Other system expansion products
![[Daystar accel.]](daystar1.jpg)
Accelerators, processors, and other upgrades.
If you are looking for G3 type processor upgrades or accelerators, or accelerators
for PowerMac systems, including Sonnet and NewerTech, check
our PowerMac G3 accelerator section for those items.
Apple accelerators and caches
CPU chips, processor chips
![[68040/40]](68040_40.jpg)

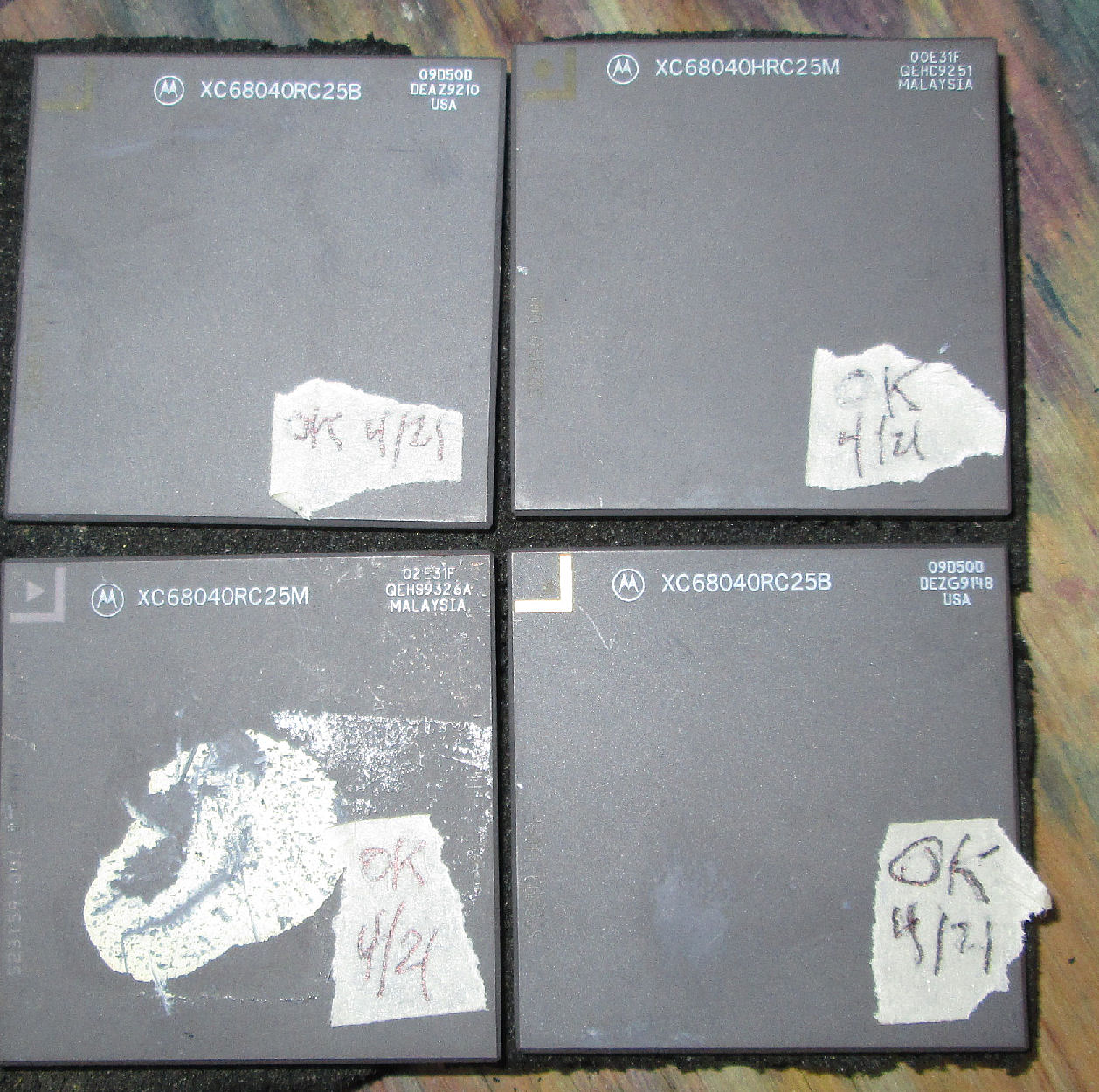

![[68040 25]](68040_25.jpg)
68LC040/25: ask
68040/25: $39 each
68LC040/33: ask
68040/33: OUT
68LC040/40: ask
68040/40: out but ask

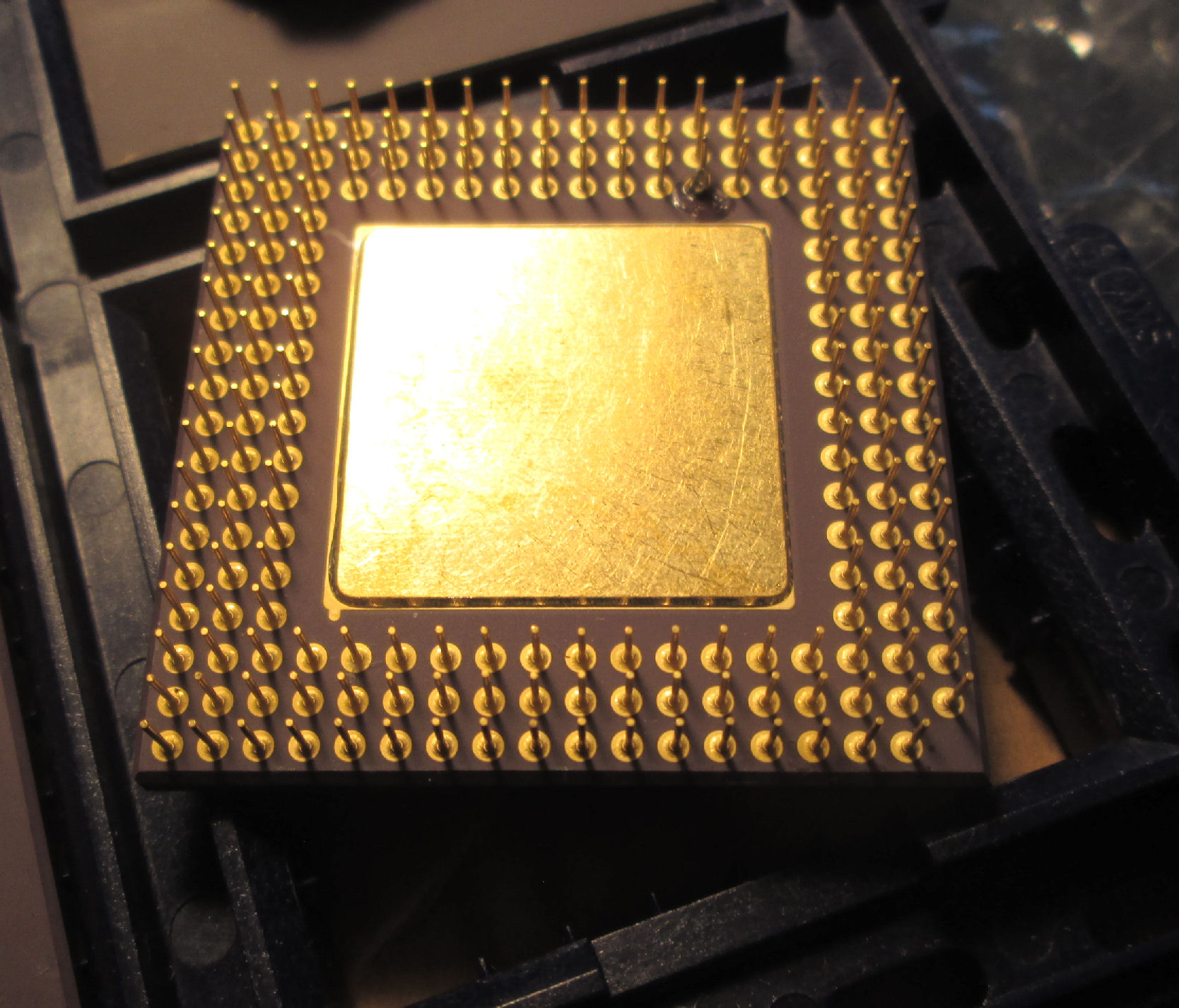

![[68040 repair]](040_rep1.jpg)
SCSI accelerators
Herb Johnson
New Jersey, USA
here's how to email and order
