We acquire some VME bus cards and docs from time to time. We'll list them here. For my convenience, these cards are organized by box or card cage or system, but the cards are generally sold individually.

For more info about these and other cards go to my home page for Multibus, VMEbus, and STDbus cards. To contact me go to my ordering page.

VME cards

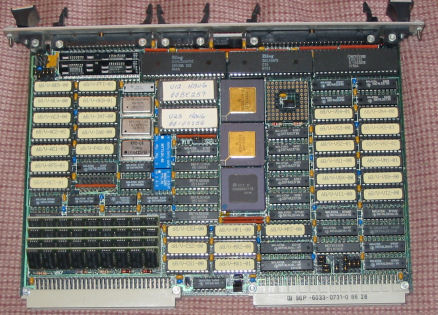

We have a few Heurikon 68010 cards. Chips include 68010R10 CPU, 68451R10 MMU, (Hitachi) HD68450Y10 (4 channel DMA), NCR 5380 SCSI, Zilog Z8536APS CIO (counter/timer/parallel), Zilog Z8530A (serial) SCC. There is a socket which is likely for the 68K math coprocessor. There are four banks of MT1259EJ-10 chips (9 per bank) on 30-pin soldered in SIMMS which are 256KX1 DRAMS. So this has 1MB of RAM. there are also two ROMS labled 68/V or HBUG. The many PALS on the card are labled 68/V (something).

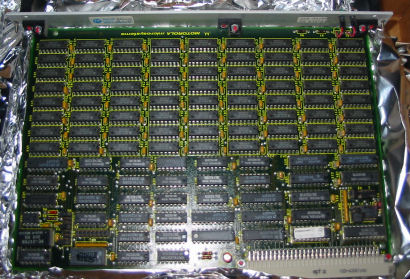

MVME 222-2 consists of three cards in box 7, and one in box 5. All cards are 01-G3025M01. In box 7 the three cards are rev B s/n 2157; rev B s/n 2015, rev A s/n 1036. In box 5 the card is rev B s/n 1996.

VME card cage #1 14 slot w/power supply rack mnt

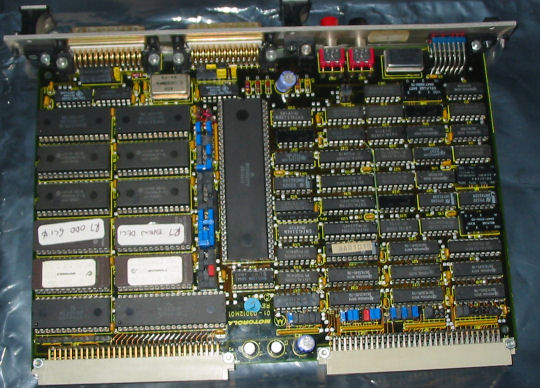

Motorola MVME101, 1984, 01-G3012M01 rev C, s/n 1001
-- 4 ROMS w/VMEBUG, 4-6264's, 6840, 6821 2-68661's. *SOLD*
Xycom DIO XVME-240, 40240-001 FREV1.1
A PROPRIETORY CARD
Heurikon 68010 card, scsi fpi serial ports. 68/V hbug roms
Eagle fifi pcb board, proprietary card?, 665353 rev 0. Inmos ims160p memory chips
Motorola MVME 110-1 68000p8 SERIAL PORT

CAGE #2 14 slot w/power supply rack mnt Motorola MVME320a-1 1985
Plessey pme acas-1

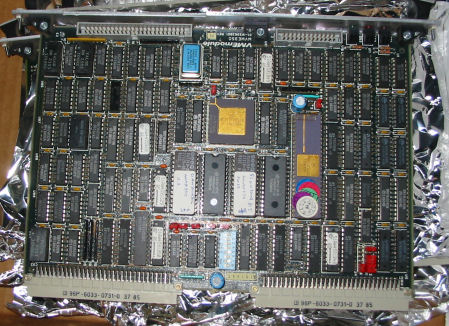

Motorola MVME 350 is in box 5. 01-W3362B01 rev M. 68010 68230
TWO MVME 222-2 01-g3025m01, one rev b 2mb ram
SOLD, worked - Motorola MVME 331 84-g8027m01 rev b three amd z8530 chips 1985
SOLD, worked - Motorola MVME 331 as above
proprietary card

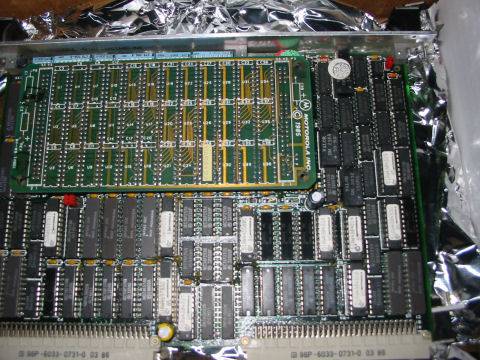

Motorola MVME 204-2 is in box 5. 01-W3418B02 refv C s/n A19681, with daughter card 84-W8?24B01
Motorola MVME 110-1 as above 01-w3047b01 rev av
Plessey pme scsi-1

cage #3 9 double slots, two sets 10 single slot w/power

Motorola MVME 110-1
Plessey pme scsi-1
???
Heurikon 68010 card, scsi fpi serial ports. 68/V hbug roms

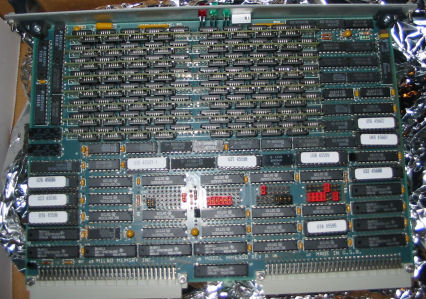

Micro Memory Inc MM-6300 is in box 7, two cards. MM6300/4M rev E, one is s/n 696, one is s/n 694.
TWO boards, MVME 222-2

one-width cards:
Mizar vme8000 reset?
Mizar vme8500 digital i/o 50 pin
Mizar vme8300 2X50 pin 2x nec d7201 chips *sold, worked Aug 2005*
Xycom xvme-200 2x 68230p10

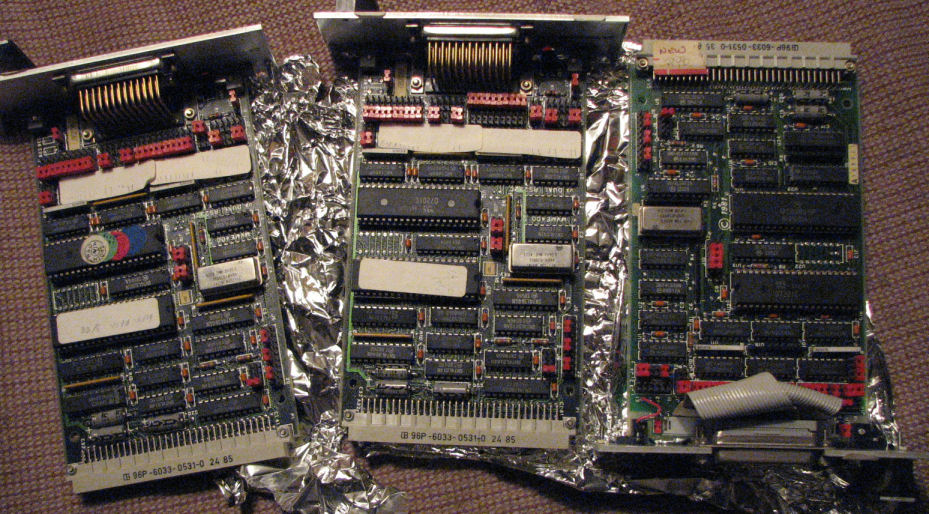

Motorola MVME 400 2-db25 84-w8432b01
Motorola MVME 400 #2
Motorola MVME 400 #3
Mizar vme 8210 512k ram
Mizar vme 8105 os9 roms, 68000/10 in DIP package

cage #4 12 slot dual width power supply
contains most of Sun 3/E (boards only) Unix System
--------------------------------------------------

sun microsystems 3/E cpu 68020/20 w 68881, 4mb, 2 ser
sun 3/E monochrome video diceon 3a 270-8020 rev 51
sun micro 4/12mb w 4mb (4mw?) on board
sun micro 3/E ethernet/scsi

sun 3/E cpu #2 270-8028-04
sun micro 3/E ethernet/scsi
sun micro 3/E color 270-8029-04 rev a 1989
Interphase v/scsi 4210 2 50-pin ports, daughter 07900xoh
sun micro 3/E ethernet/scsi

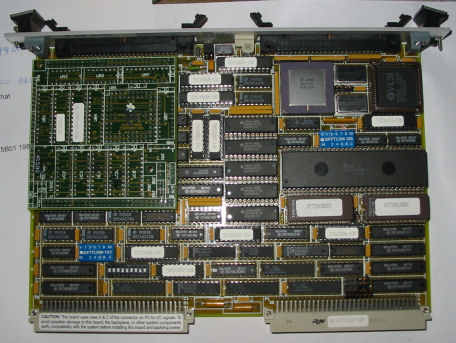

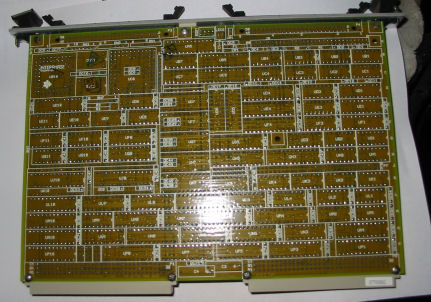

With the sun 3/E cards is Interphase V/SCSI 4210. A two-card set, HL-0770-000X0H S/N 1044; the other is HL-0790-000-X0h s/n 294 07900X0H.Here is the back of the board..

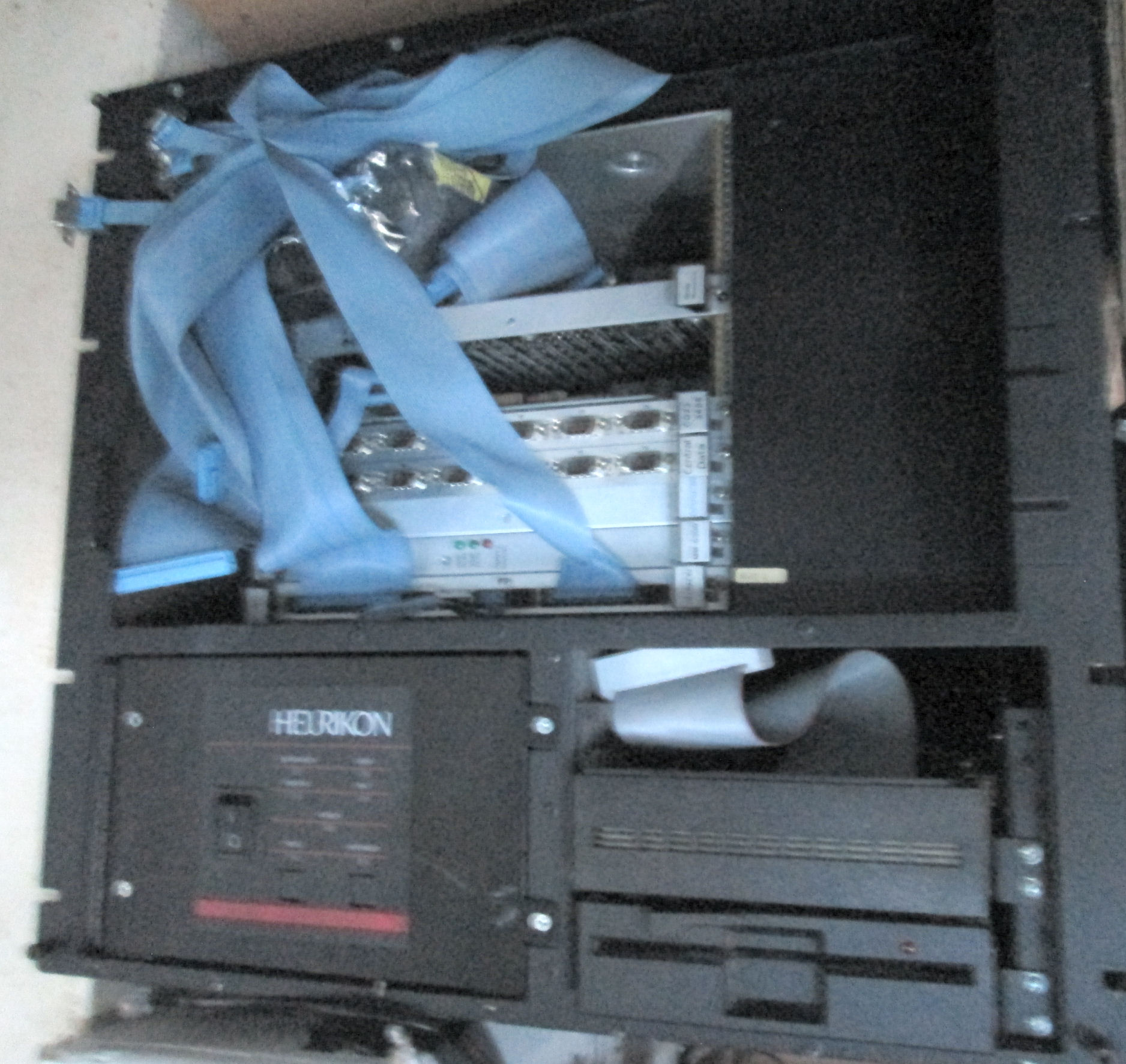

Heurikon system - Heurikon 12 slot cage w/power

Heurikon 68010 card, scsi fpi serial ports.
Micro Memory Inc. mm-6300
MCT 6020
Central Data cd23/3608 6 serial
Central Data cd23/3608 6 serial
???card
Interphase v/smd3200
Plessey pme scsi-1
5.25" floppy drive, somekind parallel/SCSI adapter
where is hard drive??

VME boxed cards

Xycom box 1:
  2 - xycom xvme-200 1-width
  1 - Motorola vme 085 proto board *SOLD*
  1 - Motorola MVME 222-2 memory
  1 - Micro Memory Inc mm-6300
  1 - Excelan exos 202 1987, 900008.04 rev g 80186 serial ram  *SOLD*
  1 - Plessey pme scsi-1

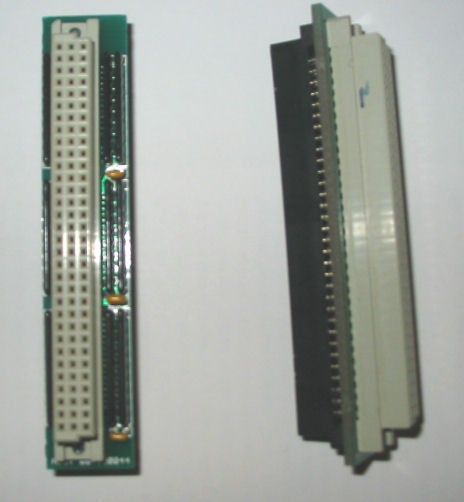

  4 - Dawn VME J1 terminator (left), vmexbtj1 06-300044
  4 - Dawn VME j2 terminator (right), vmexbtj2 06-300047

xycom box 2:
  3 - Xycom xvme 500/2, 70500-002 frev 1.1 bb adc574a one width
  2 - Xycom dio xvme-240 70240-001 frev 1.1 dual width
  2 - Xycom xvme-260, 32 reed relay i/o

xycom box 3:
  1 - Heurikon 68010 card, scsi fpi serial ports. hbug roms
  1 - Motorola MVME-350 68010/10 cpu
  1 - Motorola MVME 101, 68000/8 cpu 2 serial s/n 6340, rev D
    -- no ROMS, no RAM, 6840, 6821, 2-68661's. 01-G3012M01 rev D *SOLD*

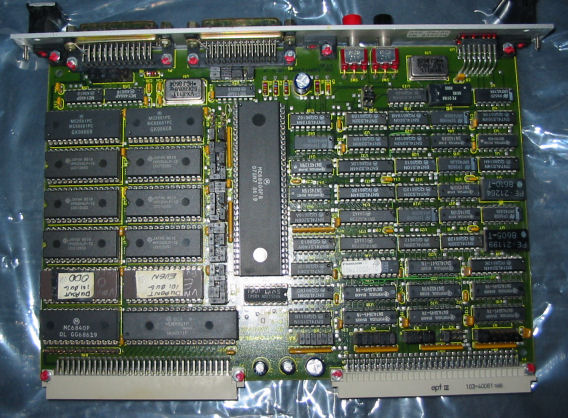

  1 - Motorola MVME 101, 68000/8 cpu 2 serial s/n 6214, rev D
    -- 2 ROMS w/DuPontBUG, 6-6264's, 6840, 6821 2-68661's 01-G3012M01 rev D *SOLD*
heurikon box 1
   1 - Motorola MVME 204-2 1985 84-w8418801 rev b, daughter 84-w8242b01
   1 - central data cd23/3608 6 serial 000181-002
   1 - Storage Concepts cdi-1285003, 60 pin on front
   3 - Plessey pme 2ep ram?

burr brown box:
   Burr-Brown MV 950C card w/manual, unused? 2 width *SOLD*

Motorola box
   Mizar mz 8106, 68000/10 cpu (DIP package) no roms, 1 width *SOLD, worked*
   Proto xvme-085 proto board, unused, dual width

Loose card box (acquired 2008 pulls from system unknown condition)
   Xycom DIO XVME-240 70240-001 rev 1.1
   Xycom IASCM XVME-428/2 70428-002 rev 4 68000/10 ROM/RAM/IO CONTROLLER INTELLIGENT PERIPHERAL
   XYCOM AOUT XVME-530 70530-001 rev 2.2 analog out 12-Bit 8-Channel
   XYCOM XVME-682 2-card set: VMEbus PC/AT processor module
      CPU, 80286 10Mhz card w/RAM card, 70682-101 rev 2.1
      I/O, 70682-201 rev 1.2, audio, CGA/EGA video, keyboard, I/O



VME manuals

Interphase corp. V/SCSI 4210 Jaguar Dual SCSI Host Adapter
   update 40 pgs, 100 pages manual

Mizar MZ186 CPU module, rev a, #4425138, 1987, 30 pgs

Mizqr VME8400 Floppy disk controller Board manual, revision 1.1
board revision B June 1983, copy, w/schematics. about 25 pgs.

Motorola MVME400 Dual serial port module user manual, w/addendum,
  1983 & 1985, 68 pgs

Motorola NEC uPD7201 Multiprotocol serial comm. controller Tech
  manual, 1983, 118 pgs

Plessey PMESCSI-1 Interface manual jan 1987 70 pgs

Xycom XVME-090 VEMbus extender board 1980 #74090 14 pgs
Xycom #74085 XVME-085 Prototyping module 1984 w/Jan 1985 update
  50 pgs
Xycom XVME-200 Digital I/O module #74200 Jan 1986 44 pgs
Xycom XVME-500 Analog input module #74500 1986 80 pgs
Xycom XVME-240 digital I/O module #74240 w/update, 1985, 80 pgs

Storage Concepts VME21 host adapter users guide rev 1.0 Apr 1985 110 pgs
Storage Concepts Concept 21 product description rev 1.0 Aug 84 10 pgs
Storage Concepts MicroVMS Device driver for QB21 host adapter ver 1.2 mar 1986 20 pgs

Solflower Computer SFVME series users manual & install guide
   rev 1.1 mar 1991 54 pgs

Micro memory Inc MM6260D user's guide May 1989 32 pg
Micro memory Inc MM6300D Users guide Jan 1987
